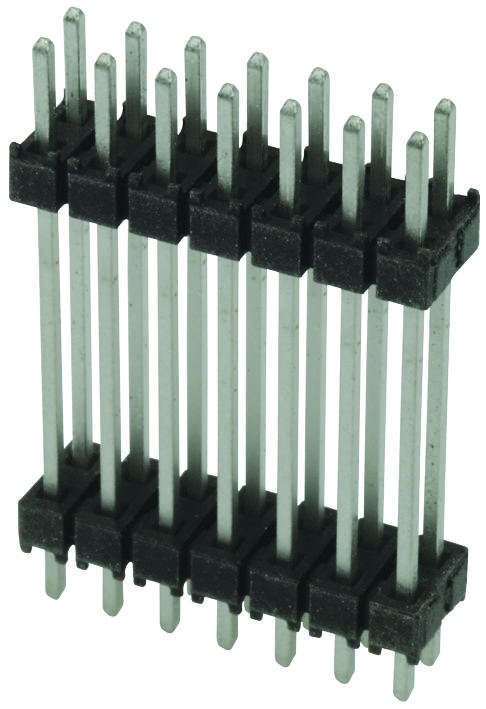

SAMTEC DW0520TD800 high-temperature connector
The DW-11-20-T-D-825 is a flexible, high-temperature connector designed for industrial applications, featuring a black glass-filled polyester insulator and phosphor bronze terminals with gold or tin plating. Its operating temperature ranges from -55°C to +125°C with gold and -55°C to +105°C with tin. The connector supports RoHS compliance, is solderable, and recommended for mechanical stability with board spacers. Suitable for demanding environments, it offers reliable electrical connections using 2.54 mm (.100”) pitch, making it ideal for complex electronic assemblies, control panels, and industrial equipment.
SAMTEC DW0520TD800 high-temperature connector Specifications:
- Insulator Material: Black Glass-Filled Polyester (DW, EW, ZW); Natural Liquid Crystal Polymer (HW)
- Terminal Material: Phosphor Bronze with Au or Sn over Ni plating
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes, Lead-Free Solderable
- Pin Pitch: 2.54 mm (.100 inches)
- Connector Length: 7.87 mm (0.309 inches) typical
- Plating Thickness: 50 micro inches (1.27 μm) minimum
- Cable Mates Compatibility: ZW, HW, DW, EW styles
- Solderability: Yes, wave only
- Mechanical Stability: Use of board spacers recommended for gold-plated connectors
Buy the Samtec DW0520TD800 – Reliable High-Temperature Connector for Industrial Applications
Buy the Samtec DW0520TD800 high-temperature connector online today to ensure a dependable, RoHS-compliant connection in your industrial or electronic projects. Designed for harsh environments, it features durable gold or tin plating, a flexible polyester insulator, and excellent thermal stability up to 125°C. Its 2.54 mm pitch simplifies integration into complex assemblies. With recommended mechanical support, this connector offers stable electrical performance, making it ideal for control panels, automation systems, and demanding electronic applications. Purchase now for fast, reliable delivery and peak performance.
Order your Samtec Series DW0520TD800 high-temp connector today and enhance your project’s reliability with our durable, industry-grade connectors.
