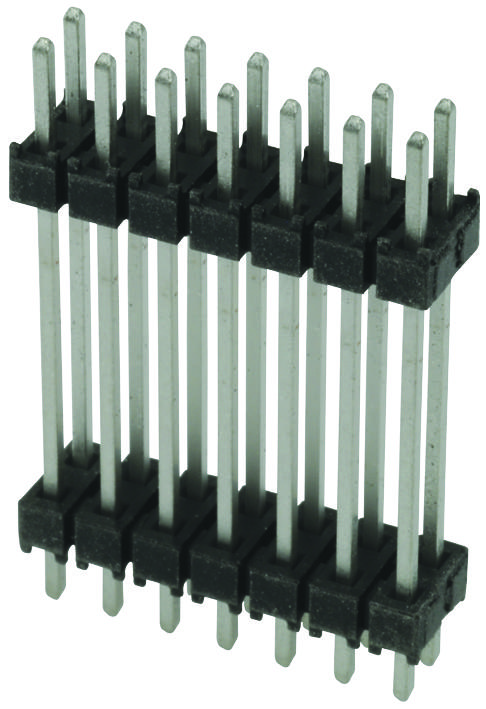

SAMTEC DW2520SD670 Board Stacker Connector
The DW2520SD670 is a versatile board stacking connector designed for high-density electronic assemblies. Featuring a robust construction with insulator materials like black glass-filled polyester and natural liquid crystal polymer, it ensures durability and reliable electrical performance. The connector supports a wide operating temperature range from -55°C to +125°C with gold plating, providing excellent corrosion resistance. Its compact design with a 2.54 mm pitch and optional longer tail options makes it suitable for complex, space-constrained applications in industrial, automation, and control systems. RoHS compliant and wave solderable, the DW2520SD670 facilitates easy and sustainable manufacturing processes.
SAMTEC DW2520SD670 Board Stacker Connector Specifications:
- Insulator Material: Black Glass-filled Polyester, Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over Ni or Sn over (OAL)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Wave Solderable: Yes
- Connector Pitch: 2.54 mm
- Dimensions: Length varies with options, typical height options 8, 10.9, 16.0 mm
- Number of Pins: Multiple pin options, 8, 10, 16, etc.
- Certifications: RoHS Compliant
- Application: PCB mounting, electronic modules, control applications
- Additional features: Mechanical stability enhancements recommended with spacers for gold plated connectors
