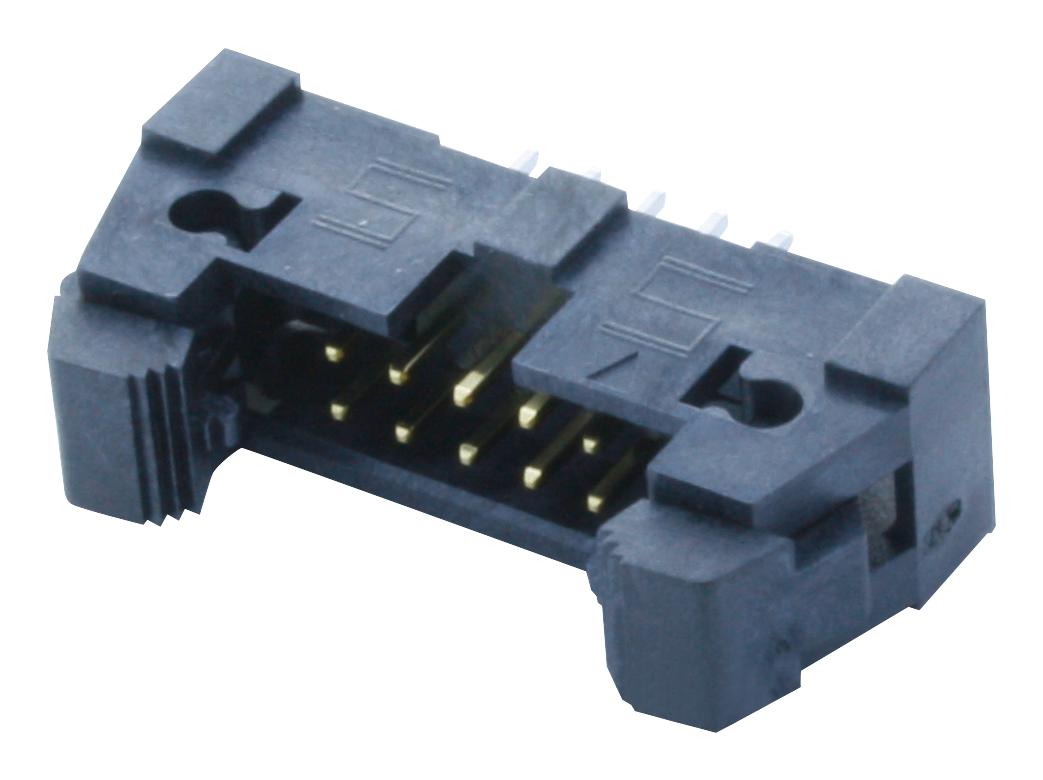

SAMTEC EHT12001SDRA PCB Connector
The EHT-120-01-F-D-SM-LC is a high-quality connector designed for PCB applications, featuring a black liquid crystal polymer insulator and phosphor bronze terminals with optional gold or tin plating. It supports operating temperatures from -55°C to +125°C, ensuring durability in diverse environments. Suitable for 2mm IDC cable assemblies, it offers SMT lead coplanarity of 0.004 inches and complies with RoHS standards. This connector is available in various sizes and mounting options, including through-hole, right angle, and surface mount configurations. Ideal for industrial electronics and communication systems, it ensures reliable connections with industry-standard specifications.
SAMTEC EHT12001SDRA PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-Free
- Solderability: Yes
- SMT Lead Coplanarity: 0.004 inches
- Suitable for 2mm IDC cable assemblies
- Mounting Options: Through-hole, right angle, surface mount
- Standard Sizes: 05, 08, 10, 12, 13, 15, 17, 20, 22, 25
- Contacts: Gold flash on post, various styles available
- Compatibility: Supports common 2mm IDC cables and wire ranges
- Certifications: RoHS compliant, industry-standard quality
- Temperature: -55°C to +125°C
- Design: Compact, reliable, suitable for industrial and communication applications
Buy the Samtec EHT12001SDRA – Reliable PCB Connector for Industrial Applications
Discover the high-performance PCB connector EHT-120-01-F-D-SM-LC from Samtec, engineered for reliability in industrial environments. Featuring a black liquid crystal polymer insulator, phosphor bronze terminals, and options for gold or tin plating, it supports operating temperatures from -55°C to +125°C. Designed for 2mm IDC cables, it offers multiple mounting options including through-hole, right angle, and surface mount. This RoHS-compliant connector guarantees durability, precise solderability, and industry-standard features suitable for communication, automation, and electronic systems. Secure your purchase online today for dependable connectivity and quality assurance.
Buy Samtec EHT12001SDRA now and experience unmatched reliability and performance in PCB connectivity and cable assemblies.
Frequently Asked Questions
Where can I buy SAMTEC EHT12001SDRA?
You can click on the BUY or RFQ button to purchase EHT12001SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part EHT12001SDRA?
You can download the EHT12001SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of EHT12001SDRA?
SAMTEC
