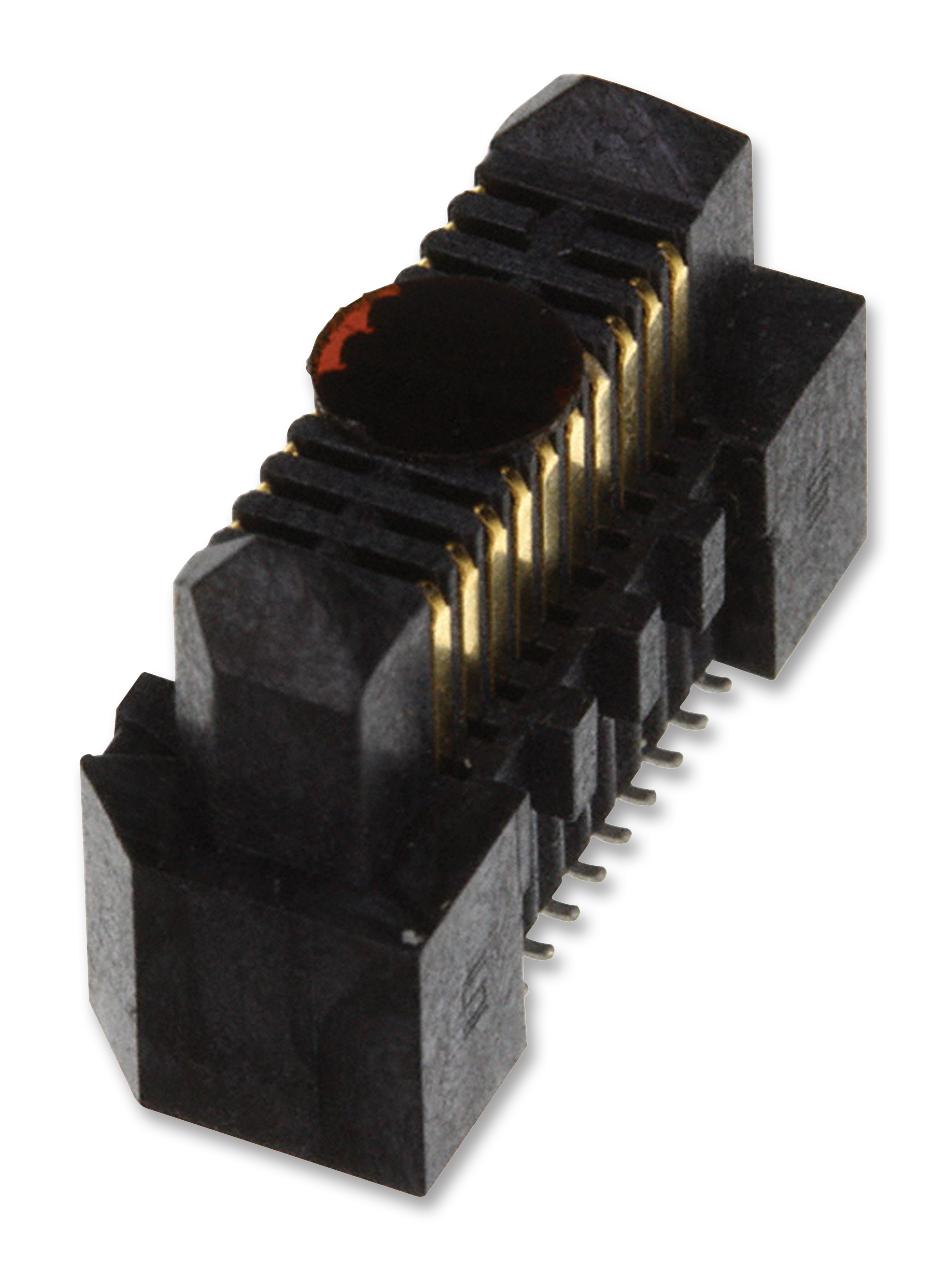

SAMTEC ERM8040050SDVLKTR High-Speed Header
The rugged high-speed header is designed for demanding industrial applications requiring high reliability and performance. It features a black LCP insulator material, phosphor bronze terminals, and gold or matte tin plating options for excellent conductivity and corrosion resistance. Operating across -55°C to +125°C with a voltage rating of up to 225 VAC/DC, it supports high pin counts per row and SMT lead coplanarity. Certified RoHS compliant, this connector offers extended life, multiple positions per row, and is suitable for high-speed data protocols including PCI Express and GbE, making it ideal for rugged and high-speed electronic assemblies.
SAMTEC ERM8040050SDVLKTR High-Speed Header Specifications:
- Insulator Material: Black LCP
- Terminal Material: Phosphor Bronze
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 225 VAC / 318 VDC
- Mated Height: 7.20 mm
- No. of Positions per Row: Up to 100
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Plating Options: Matte Tin, Gold
- SMT Lead Coplanarity: Max 0.004" (0.10 mm) or 0.005" (0.12 mm)
- Certifications: Recognition based on www.samtec.com/quality
- Design: Rugged high-speed header for industrial applications
- Dimensions: Length varies with options, typical 7.20 mm height
- Profile: Low profile, suitable for space-constrained assemblies
- Protocols Supported: PCI Express, GbE
Buy the Samtec ERM8-013-05.0-S-DV-DS-L-TR – Reliable High-Speed Headers for Industrial Applications
Secure your industrial and high-speed data connections with the rugged high-speed header. Featuring robust construction, high pin counts, and multiple plating options, it ensures reliable performance across a wide temperature range. Certified RoHS compliant, designed for space-efficient assemblies, and suitable for protocols like PCI Express and GbE, this connector enhances your electronic system's durability and data integrity. Order online now and benefit from quick delivery, quality assurance, and technical support for your industrial hardware needs.
Buy Samtec ERM8-013-05.0-S-DV-DS-L-TR now and experience unmatched reliability and performance in rugged high-speed interconnects.
Frequently Asked Questions
Where can I buy SAMTEC ERM8040050SDVLKTR?
You can click on the BUY or RFQ button to purchase ERM8040050SDVLKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ERM8040050SDVLKTR?
You can download the ERM8040050SDVLKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ERM8040050SDVLKTR?
SAMTEC
