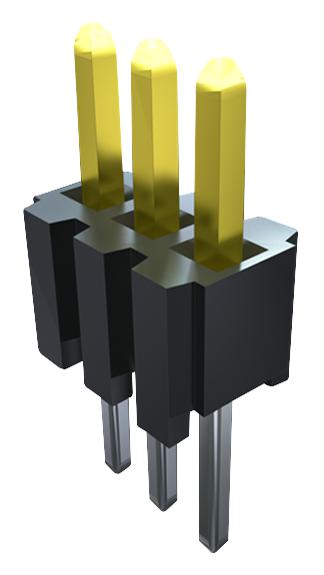

SAMTEC TMS10102LS Micro Terminal Headers
The TMS series by Samtec features standard micro terminal strip headers ideal for through-hole mounting in industrial applications. These unshrouded headers have 0.018-inch square posts, compatible with SMS, SLM, and RSM series connectors, available in single or dual row configurations with a 1.27mm pitch. Constructed with phosphor bronze contacts, they are gold-plated for durability, featuring a temperature tolerance from -55°C to 125°C. Made of black liquid crystal polymer, these headers meet UL E111594 standards and support configurations with up to 100 pins, proving reliability and versatility.
SAMTEC TMS10102LS Micro Terminal Headers Specifications:
- Insulator Material: Black Liquid Crystal Polymer, UL E111594 compliant
- Contact Material: Phosphor Bronze, Gold-plated
- Post Size: 0.018 inch (0.46mm) square
- Pitch: 1.27mm
- Configuration: Single or dual row
- Pin Count: Up to 50 contacts per row, polarized options up to 100 pins
- Temperature Range: -55°C to +125°C
- Mounting Style: Through-hole
- Orientation: Straight
- Compatibility: Samtec SMS, SLM, RSM series
- Suitable for industrial applications
- Part Number: TMS-110-02-L-D
Buy the Buy Samtec Micro Terminal Headers Part Number TMS-110-02-L-D Online
Purchase the Samtec TMS-110-02-L-D micro terminal headers online today. These high-quality, corrosion-resistant connectors are designed for reliable through-hole mounting, ensuring optimal electrical performance and mechanical stability. Perfect for industrial, automation, and manufacturing environments, they feature gold-plated contacts for durability and a temperature range of -55°C to 125°C. Compatible with Samtec SMS, SLM, and RSM series, they support configurations with up to 100 pins, providing versatility and ease of installation for your electronic projects.
Get Samtec TMS-110-02-L-D today—built for precision and long-lasting durability in industrial settings.
Frequently Asked Questions
Where can I buy SAMTEC TMS10102LS?
You can click on the BUY or RFQ button to purchase TMS10102LS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMS10102LS?
You can download the TMS10102LS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMS10102LS?
SAMTEC
