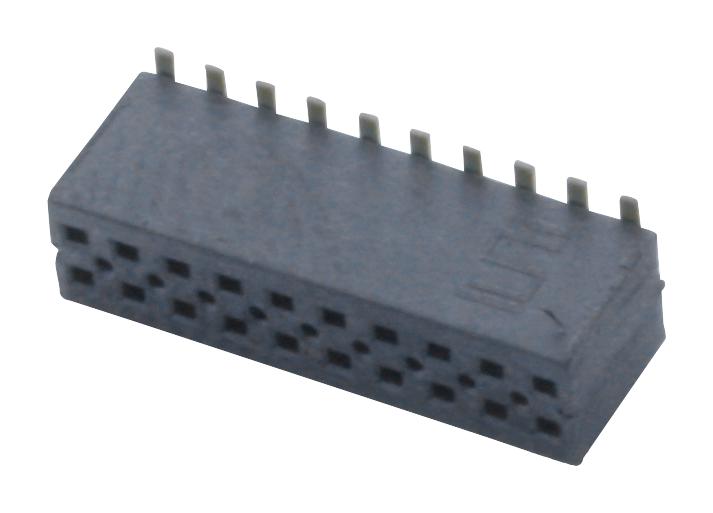

SAMTEC FLE10501GDVA Socket Connector
The FLE Series socket is a cost-effective, reliable pass-through connector ideal for board-to-board applications. Made with black liquid crystal polymer insulator and TIGER phosphor bronze contacts, it offers a current rating of 2.9 A per pin. Designed for operation between -55°C and +125°C, it supports up to 100+ mating cycles. The socket features optional pass-through variants, gold plating options, and is RoHS compliant. Suitable for SMT mounting with a typical insertion depth of 1.83 mm. Available in multiple lengths and configurations for flexible integration in electronic assemblies.
SAMTEC FLE10501GDVA Socket Connector Specifications:
- Material: Black liquid crystal polymer insulator
- Contact Material: TIGER phosphor bronze
- Plating: Gold over 50 μ
- Current Rating: 2.9 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 1.83 mm to 4.37 mm
- RoHS Compliance: Yes, with gold plated callouts
- Lead-Free Solderable: Yes
- Maximum Cycles: 100+ mating cycles
- RoHS compliant: Yes
- Pass-through: Available with optional pass-through features
- Mounting Style: SMT
- Dimensions: Length varies with options, typical length options include 1.83 mm and 4.37 mm
Buy the Buy Samtec FLE Series Socket Part Number FLE10501GDVA Online
Experience the reliability and cost-effectiveness of the Samtec FLE Series Socket, ideal for PCB mounting and board-to-board connections. Made with high-quality materials including black liquid crystal polymer insulator and TIGER phosphor bronze contacts, it supports a current of 2.9 A per pin and operates from -55°C to +125°C. Suitable for SMT mounting, it offers an optional pass-through feature and is RoHS compliant. With over 100 mating cycles, this socket connector ensures durable and long-lasting performance in demanding electronic applications.
Get Samtec FLE10501GDVA today—designed for high reliability, flexible mounting options, and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC FLE10501GDVA?
You can click on the BUY or RFQ button to purchase FLE10501GDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FLE10501GDVA?
You can download the FLE10501GDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FLE10501GDVA?
SAMTEC
