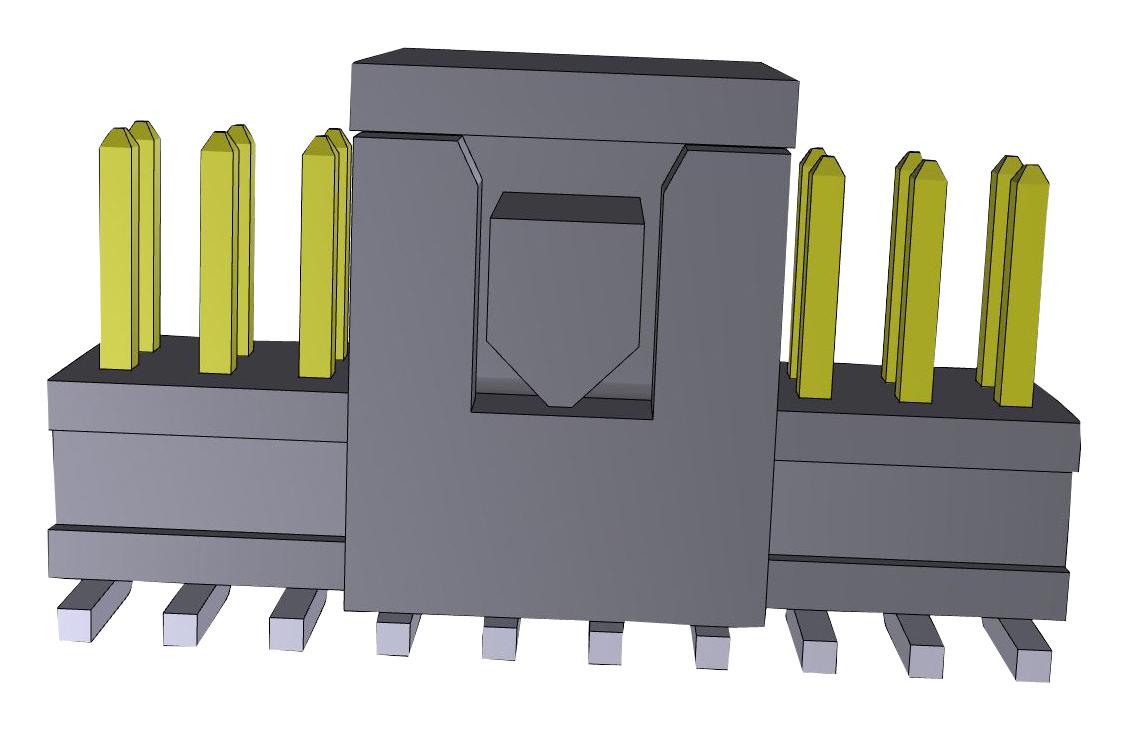

SAMTEC FTSH11001LDVKPTR High-Density PCB Connector
The FTSH series high-density, surface-mount board-to-board connectors feature ultra-low profile design and are made with black liquid crystal polymer insulators and phosphor bronze terminals plated with gold over nickel. Designed for reliable connections, these connectors support current ratings up to 3.4 A per pin and operate within -55°C to +125°C temperature range. They include optional features like molded pick & place pads, latches, and various shroud options. Compatible with multiple mating styles, they are RoHS compliant and lead-free, ensuring durability and manufacturing flexibility.
SAMTEC FTSH11001LDVKPTR High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 µin Ni
- Current Rating: 3.4 A per pin (2 pins powered)
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Max Coplanarity: 0.10 mm (.004") or 0.15 mm (.006") depending on tail option
- Connectors support optional molded pick & place pads, latches, end shrouds
- Compatible with various mating styles and configurations
- Surface mount design suitable for high-density PCB applications
- Includes optional features like flexible shrouds and ejector shrouds
- Designed for reliable electrical connections in demanding environments
Buy the Samtec Series FTSH: High-Density Surface Mount Connectors: FTSH11001LDVKPTR
Discover the reliable FTSH series high-density surface-mount connectors designed for compact electronic assemblies. Made with durable liquid crystal polymer and gold-plated phosphor bronze contacts, these connectors support up to 3.4 A per pin and operate safely within -55°C to +125°C. They include optional features like molded pick & place pads, latches, and shrouds, ensuring flexible, secure connections for demanding applications. Purchase online today for high-quality, RoHS-compliant connectors built for longevity and ease of assembly.
Get Samtec FTSH11001LDVKPTR today—built for precision and long-lasting durability in high-density electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC FTSH11001LDVKPTR?
You can click on the BUY or RFQ button to purchase FTSH11001LDVKPTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH11001LDVKPTR?
You can download the FTSH11001LDVKPTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH11001LDVKPTR?
SAMTEC
