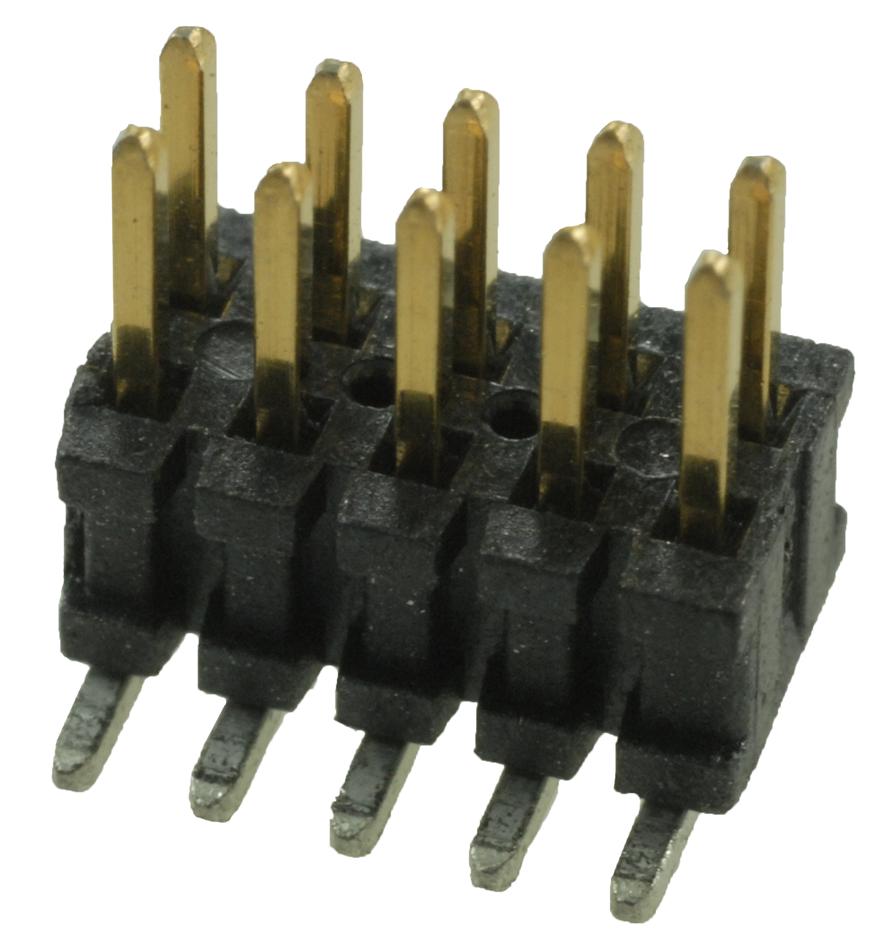

SAMTEC FTSH11701LDVEJP High-Density Surface Mount Connector
The FTSH series is a high-density, ultra-low profile, surface-mount connector designed for robust PCB terminations with excellent electrical performance. Made with black liquid crystal polymer insulators and phosphor bronze contacts plated with gold over nickel, these connectors support currents up to 3.4 A per pin. Suitable for a wide operating temperature range of -55°C to +125°C, they feature molded pick-and-place pads, optional latches, and various configurations for high mating cycles and durability. Ideal for compact electronic assemblies requiring reliable connections and RoHS compliance.
SAMTEC FTSH11701LDVEJP High-Density Surface Mount Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μin Nickel
- Current Rating: 3.4 A per pin
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Surface Mount Compatibility
- Dimensions vary depending on model, with options for miniature and extended-life configurations
- Flammability: UL 94V-0
- Contact Material: Copper Alloy with gold plating
- Tail Options: -DV (0.10 mm) max, -DH (0.15 mm) max
- Mating Cycles: Designed for high durability with optional latches and shrouds
- Compatibility: Mates with various Samtec FTS series headers and connectors
Buy the Samtec Series FTSH Connector: FTSH11701LDVEJP
Upgrade your electronic assemblies with the high-density surface-mount connector. Featuring gold-plated contacts and an ultra-low profile design, it delivers excellent electrical performance and reliability. Suitable for applications requiring minimal space and high durability, this connector supports currents up to 3.4 A per pin and works within a temperature range of -55°C to +125°C. Its RoHS compliance ensures environmentally friendly manufacturing. Easily integrate into your PCB with molded pick-and-place pads, optional latches, and varied configurations for maximum versatility and longevity.
Buy Samtec FTSH11701LDVEJP now and experience unmatched reliability and performance in compact PCB interconnect solutions.
Frequently Asked Questions
Where can I buy SAMTEC FTSH11701LDVEJP?
You can click on the BUY or RFQ button to purchase FTSH11701LDVEJP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FTSH11701LDVEJP?
You can download the FTSH11701LDVEJP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FTSH11701LDVEJP?
SAMTEC
