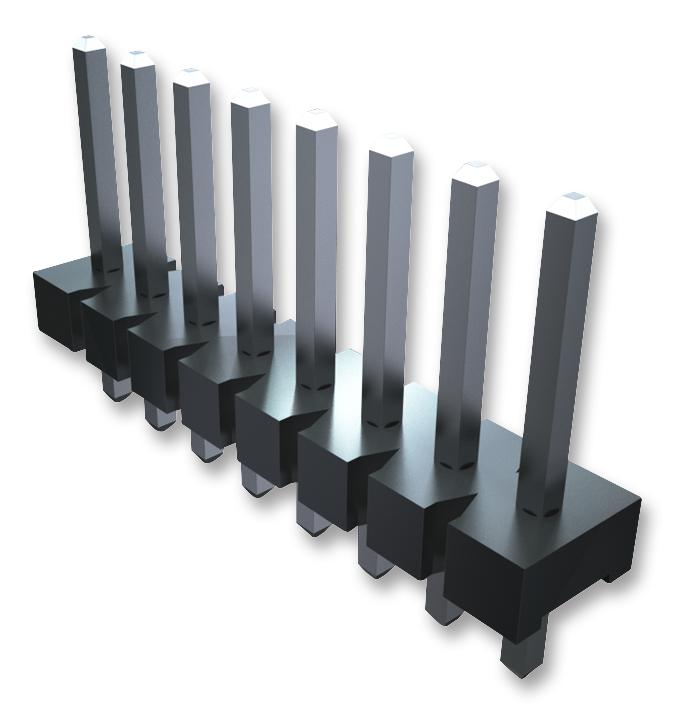

SAMTEC FWJ0501TS PCB Header Connectors
The FWJ-05-02-T-S-RA series from Samtec features high-quality PCB headers designed for reliable electrical connections in electronic systems. Constructed with black glass and natural liquid crystal polymer insulators, these connectors are RoHS compliant and lead-free, suitable for automatic surface-mount assembly with excellent coplanarity. Made of phosphor bronze with tin over 1.27 μm nickel plating, they operate from -55°C to +105°C, offering robust performance in demanding environments. Available in multiple configurations, these headers ensure precise mating and efficient PCB layouts for various applications.
SAMTEC FWJ0501TS PCB Header Connectors Specifications:
- Insulator Material: Black Glass or Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn over 1.27 μm Ni
- RoHS Compliant: Yes
- Operating Temperature Range: -55°C to +105°C
- Processing: Lead-Free Solderable, SMT Lead Coplanarity 0.20 mm (.008"), 0.25 mm (.010") max.
- Maximum Current per Pin: 13.1A, 12A, 10.3A, 9.2A, 6.7A
- Height Options, varies per configuration
- PCB Mount Style: SMT with precise coplanarity
- Recognitions: Complete specs available at samtec.com/quality
- Suitable for high-density, reliable electronic system connections
- Multiple pin configurations and optional heights available to suit different layouts
Buy the Samtec Series FWJ PCB Headers: FWJ-05-02-T-S-RA
Enhance your electronic projects with the Samtec FWJ-05-02-T-S-RA PCB headers, designed for precise mating and robust performance. These connectors feature a black glass insulator, are RoHS compliant, and have a lead-free construction suitable for automatic SMT soldering, with excellent coplanarity to ensure consistent quality. Operating from -55°C to +105°C, they cater to demanding applications in high-reliability systems. Available in various configurations, they simplify PCB layout with reliable electrical connections essential for modern electronics. Purchase online today to ensure your system's durability and performance.
Get Samtec FWJ-05-02-T-S-RA today—built for high-reliability and efficient PCB connections in demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC FWJ0501TS?
You can click on the BUY or RFQ button to purchase FWJ0501TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FWJ0501TS?
You can download the FWJ0501TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FWJ0501TS?
SAMTEC
