SAMTEC FWS0202TSRA High-performance Connector Series
This product is a high-performance connector series including FWS, HFWS, and SW series, designed for robust electrical connections in various applications. Made with glass-filled polyester and liquid crystal polymer insulators, and phosphor bronze terminals plated with tin over nickel for excellent conductivity and corrosion resistance. Rated for 11.4 A per pin, operating from -55°C to +105°C, and supporting up to 500 V. Suitable for SMT mounting with excellent coplanarity, it meets RoHS compliance and offers lead-free solderability for reliable, environmentally friendly installation.
SAMTEC FWS0202TSRA High-performance Connector Series Specifications:
- Insulator Material: Glass Filled Polyester (FWS, SW), Liquid Crystal Polymer (HFWS, SW-VS)
- Terminal Material: Phosphor Bronze
- Plating: Sn over 50u" Ni
- Current Rating: 11.4 A per pin
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating: 500 V at mating with PSS
- RoHS Compliance: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: 0.20 mm to 0.25 mm depending on style
- Number of Positions: 6, 8, 20
- Height Options: 3 Pos. Min., Stack Height Variable
- Length and Style: Non-standard lengths, style options available, subject to change
- Designed for durable electrical connections in industrial electronics, automation, and control systems, supporting high current loads with reliable performance and environmental durability.

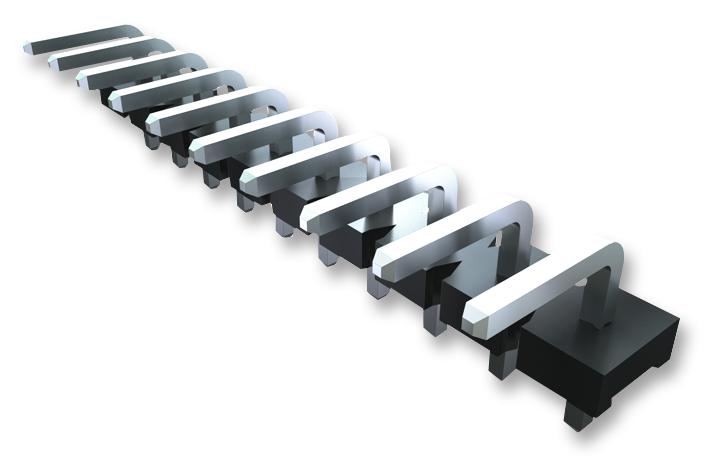

Buy the Buy Samtec FWS0202TSRA Part Number FWS0202TSRA Online
Secure your electronic projects with the high-performance connector series from Samtec. Featuring glass-filled polyester insulators and tin-plated phosphor bronze terminals, these connectors are rated for 11.4 amps per pin and operate from -55°C to +105°C. Supporting SMT mounting with excellent coplanarity, they are RoHS compliant and lead-free solderable, suitable for industrial, automation, and control systems. Invest in durability and reliability by purchasing online today for precision connections.
Buy Samtec FWS0202TSRA now and experience unmatched reliability and high current performance for your electronic connection needs.
Frequently Asked Questions
Where can I buy SAMTEC FWS0202TSRA?
You can click on the BUY or RFQ button to purchase FWS0202TSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part FWS0202TSRA?
You can download the FWS0202TSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of FWS0202TSRA?
SAMTEC
