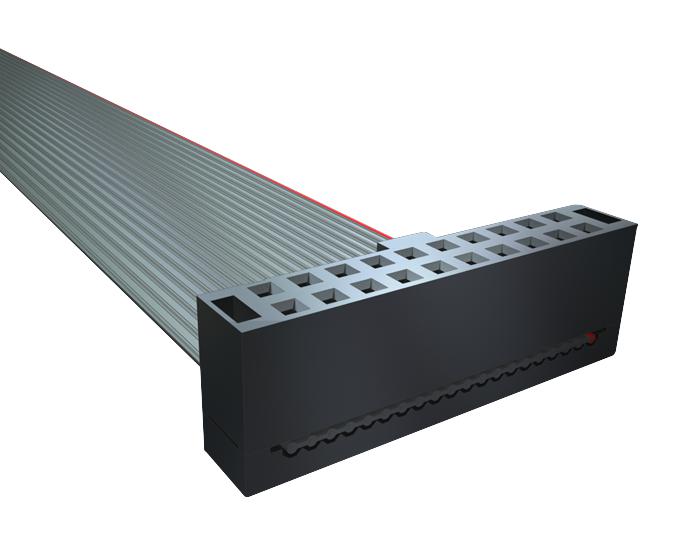

SAMTEC HCSD05D114001NGR IDC Socket and Terminal Cable
The SAMTEC HCSD-05-D-11.40-01-N-G-R is a versatile IDC (Insulation Displacement Connector) socket and terminal cable designed for robust and reliable connections in various industrial and commercial applications. Constructed with a black liquid crystal polymer insulator and phosphor bronze contacts plated with gold for optimal signal transmission and durability, this connector ensures high-performance connectivity. It is RoHS compliant, indicating adherence to environmental standards, and operates effectively within a temperature range of -20°C to +105°C, making it suitable for a wide range of operating environments. The connector's design facilitates easy termination and secure connections, contributing to efficient assembly processes and dependable system performance.
SAMTEC HCSD05D114001NGR IDC Socket and Terminal Cable Specifications:
- Material: Insulator: Black Liquid Crystal Polymer, Contact: Phosphor Bronze
- Flammability Rating: UL 94V-O
- Insulation Resistance: 5000 MΩ
- Temperature Range: -20 °C to +105 °C
- Withstanding Voltage: 1000 VRMS @ 60 Hz
- Contact Plating: 150 µ" Au on contact area, Sn on balance over 50 µ" Ni
- Lead Size Range: .024" SQ to .026" SQ
- Lead Insertion Depth: .185" to .250"
- Wire: 28 AWG 7/36 stranded Tinned Copper
- RoHS Compliant: Yes
Buy the HCSD-05-D-11.40-01-N-G-R SAMTEC IDC Socket and Terminal Cable | myMectronic
Purchase the SAMTEC HCSD-05-D-11.40-01-N-G-R IDC Socket and Terminal Cable securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC HCSD05D114001NGR?
You can click on the BUY or RFQ button to purchase HCSD05D114001NGR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HCSD05D114001NGR?
You can download the HCSD05D114001NGR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HCSD05D114001NGR?
SAMTEC
