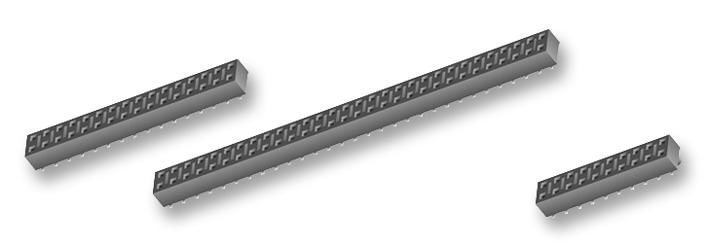

SAMTEC HLE10902LDV Industrial Electrical Connector
This high-quality electrical connector features a black Liquid Crystal Polymer insulator, BeCu contact material, and optional gold or tin plating. It supports a 4.1A current rating and 400VAC voltage rating, with RoHS compliance and lead-free solderability. Designed for vertical orientation, it includes through-hole termination with an insertion depth ranging from 0.070" to 0.135". The component offers robust mechanical stability with low insertion and withdrawal forces, is suitable for industrial environments, and supports SMT lead coplanarity. Its versatile design enables reliable PCB connections in demanding applications.
SAMTEC HLE10902LDV Industrial Electrical Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Au or Sn over 50u" Ni
- Current Rating: 4.1A per pin
- Voltage Rating: 400VAC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Insertion Depth: 0.070" to 0.135"
- Operates in temperatures from -55°C to +125°C
- Mechanical forces: Insertion force not specified, Withdrawal force is 4.6 oz (0.44 N) on average
- Compatibility: Supports TSW, MTSW, DW, EW, ZW, TLW, TSM, MTLW, HW series
- Processing: Suitable for SMT with coplanarity max 0.004" (0.10mm) or 0.006" (0.15mm)
- RoHS and lead-free compliant, suitable for industrial PCB assemblies
- Pass-through and bottom entry options available, with various pin counts
Buy the Samlec HLE-130-02-F-DV – Reliable Electrical Connector for Industrial Applications
Purchase the Samlec HLE-130-02-F-DV connector online today and enhance your industrial electronics projects with a durable, RoHS compliant, lead-free solution. This high-performance connector supports a current of 4.1A and a voltage of 400VAC, perfect for demanding industrial applications. Its robust construction, including black Liquid Crystal Polymer insulation and BeCu contacts, ensures reliable connections in various environments. Easy to install with through-hole termination and SMT compatibility, this connector guarantees high durability and excellent electrical performance for your manufacturing needs.
Order your Samlec HLE-130-02-F-DV series connector today and ensure your industrial projects benefit from dependable, high-quality PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC HLE10902LDV?
You can click on the BUY or RFQ button to purchase HLE10902LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HLE10902LDV?
You can download the HLE10902LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HLE10902LDV?
SAMTEC
