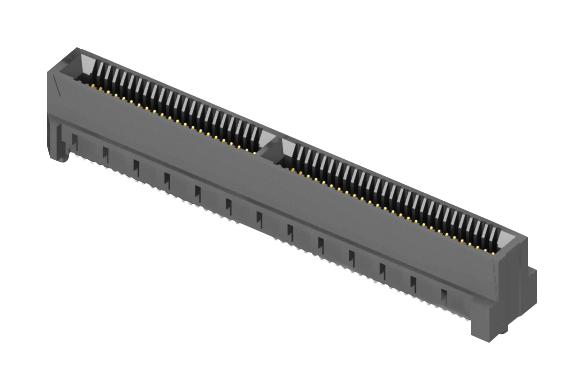

SAMTEC HSEC816001SDVABL High-Performance PCB Connector
The HSEC8-1600SDVABL connector series offers high-performance signal and ground connection options, featuring Black Liquid Crystal Polymer insulators, and gold or tin plating over nickel for durability. Designed for PCB mounting, it supports operating temperatures from -55°C to +125°C, meeting RoHS standards. Suitable for applications requiring reliable, high-quality connections, this connector mates with the ECDP series, accommodating various card sizes. It is lead-free, solderable, and designed for SMT circuits, ensuring optimal electrical performance and longevity in demanding environments.
SAMTEC HSEC816001SDVABL High-Performance PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Plating: Au or Sn over 50 pi" Ni
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Contact Material: BeCu
- Mounting: SMT
- Coplanarity: 0.10 mm
- Supported Card Sizes: 2.36 mm to 4.60 mm (0.093 to 0.181 inch)
- Number of Positions: Varies (e.g., 02, 08, 16, 32, 49)
- Mates with: ECDP Series
- Plating Options: Matte Tin on tail, Gold on contact
- Temperature Range: -55°C to +125°C
- Standards: RoHS compliant, Lead-Free soldering
- Dimensions and options vary; contact manufacturer for custom designs
Buy the Samtec Series HSEC Series High-Performance PCB Connector: HSEC8-1600SDVABL
Enhance your electronic designs with the high-reliability Samtec High-Performance PCB Connector. Featuring Liquid Crystal Polymer insulators, gold or tin plating, and compatibility with various card sizes, this connector supports temperatures from -55°C to +125°C, ensuring stability across diverse environments. Solderable, RoHS compliant, and lead-free, it guarantees robust electrical connections with excellent durability for industrial, medical, and telecommunication applications. Purchase online today for rapid deployment in your next project, backed by quality engineering designed for longevity and precision connectivity.
Get Samtec HSEC8-1600SDVABL today—built for precise signal integrity and long-lasting durability in demanding electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC HSEC816001SDVABL?
You can click on the BUY or RFQ button to purchase HSEC816001SDVABL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HSEC816001SDVABL?
You can download the HSEC816001SDVABL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HSEC816001SDVABL?
SAMTEC
