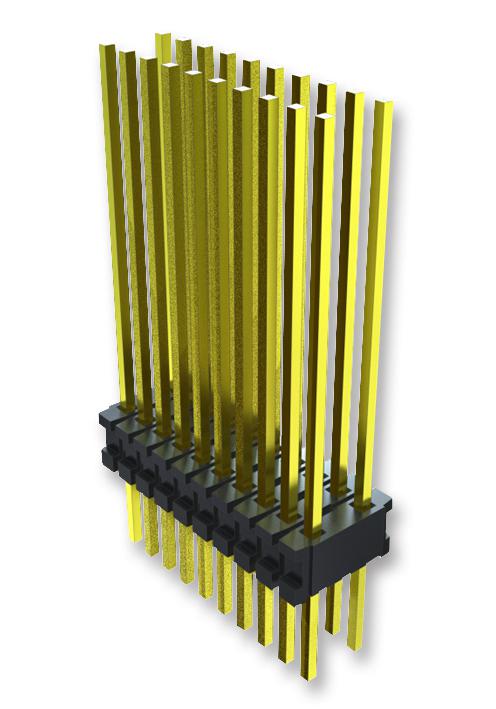

SAMTEC HTMS14001GS Micro Terminal Header
The HTMS series from Samtec are high-temperature micro terminal strip headers designed for industrial applications. These unshrouded through-hole headers feature 0.018-inch (0.46mm) square posts and are compatible with Samtec SMS, SLM, and RSM series connectors. They are available in single or dual row configurations, with a pitch spacing of 1.27mm, accommodating from 1 to 50 contacts per row in a straight orientation. The contacts are gold-plated (10 micrometers) and made of phosphor bronze, suitable for high-temperature operation from -55°C to 125°C. Optional polarization is available for designs up to 100 pins in single or double row arrangements. The insulator is made of black liquid crystal polymer and the product complies with UL E111594 standards.
SAMTEC HTMS14001GS Micro Terminal Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au (10 µm) or Sn over
- Contact Resistance: 10 mΩ
- Current Rating: 5A per pin
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Pitch: 1.27mm (0.050 inch)
- Lead Size Accept: 0.46 mm (.018 inch)
- Insertion Depth: Minimum 3.43 mm (.135 inch)
- Max Processing Temp: 450°F (232°C)
- RoHS Compliant: Yes
- Number of Contacts: 1 to 50 in single or dual row configurations
- Compatibility: SAMTEC SMS, SLM, RSM series
- Certifications: UL E111594
Buy the Buy Samtec HTMS Part Number HTMS14001GS Online
Purchase the Samtec HTMS14001GS micro terminal header online today for robust industrial performance. Designed with gold-plated contacts and black liquid crystal polymer insulation, it ensures durability and high-temperature operation. Compatible with Samtec series connectors, it features a 1.27mm pitch, 50 contacts per row, and optional polarization for up to 100 pins. Perfect for demanding applications that require reliability, thermal stability, and UL compliance. Order now to ensure seamless integration into your electronic assemblies.
Get Samtec HTMS14001GS today—built for high-temperature industrial applications with reliable high-current contacts.
