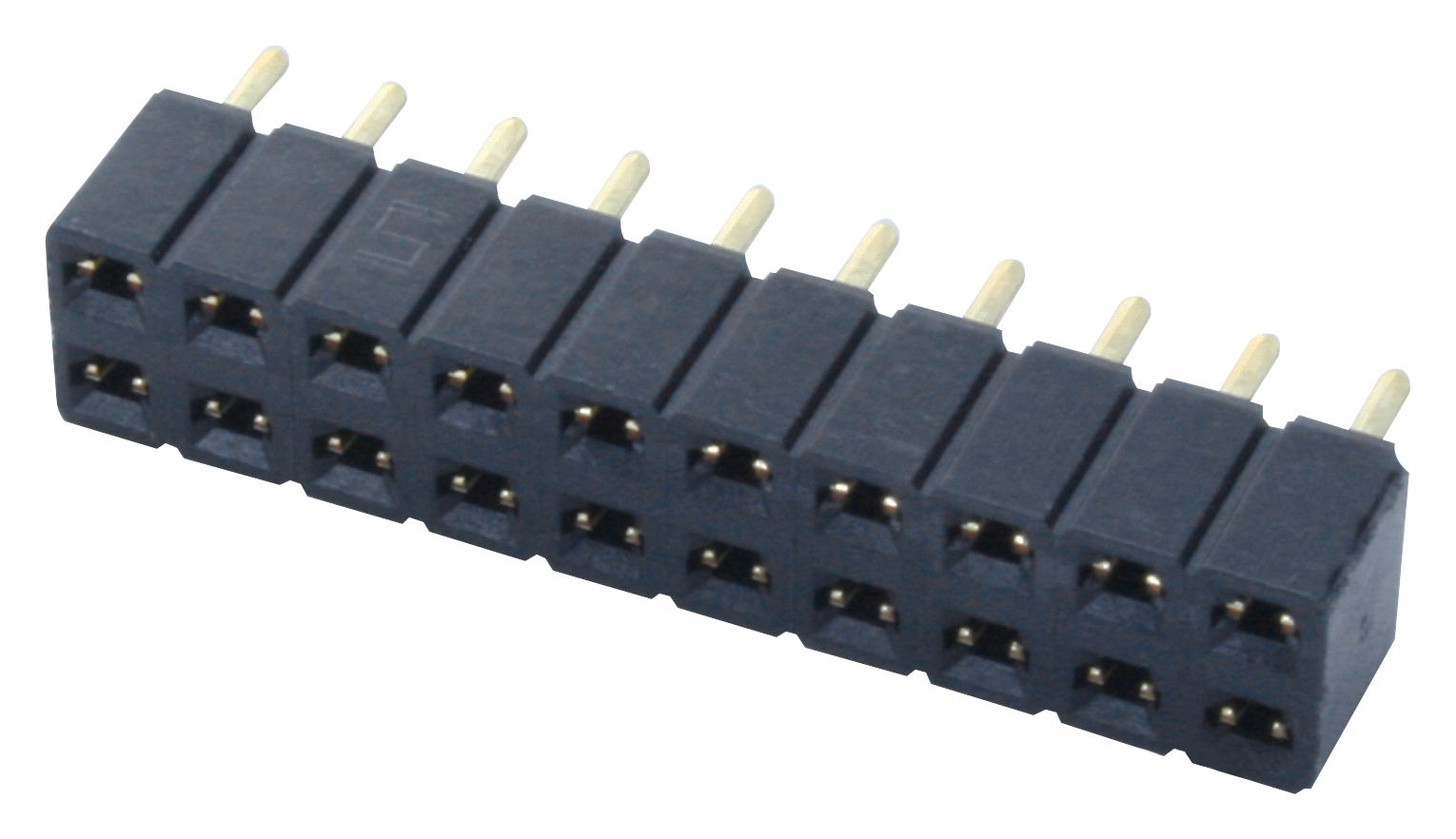

SAMTEC SLW11001GD High-Performance Electrical Connector
The SLW series is a high-quality electrical connector system featuring a compact design with gold or tin plating over phosphor bronze contacts. Designed for reliable current ratings up to 5.2A per pin and voltage ratings of 250V AC, these connectors operate efficiently from -55°C to +125°C. They include various mounting and plating options such as gold on contact with matte tin tails, ensuring durability and corrosion resistance. Suitable for applications requiring precise insertion and withdrawal forces, these connectors are compliant with OHS standards and support wave soldering. They are ideal for compact electronics, instrumentation, and industrial control systems.
SAMTEC SLW11001GD High-Performance Electrical Connector Specifications:
- Material: Phosphor Bronze contacts, Black G.F. Polyester insulator
- Plating: Au or Sn over 50u" Ni (gold on contacts, matte tin on tails)
- Current Rating: 5.2A per pin, 8A per row
- Voltage Rating: 250V AC (SLW), 400V AC (CES contacts)
- Operating Temperature: -55°C to +125°C
- Insertion/Withdrawal Force: 0.64 mm SQ pin, 1.67 N and 1.11 N respectively
- Contact Resistance: 10 mΩ maximum
- Dimensions: Length options include 2.54 mm (0.100") and 2.92 mm (0.115")
- Certifications: OHS compliant, wave solderable, RoHS compliant
- Other: Designed for multiple options, lengths, and non-standard configurations
Buy the Samtec Series SLW Connector: SLW11001GD
Purchase the high-performance electrical connector from the Samtec Series SLW today for dependable and efficient connections in your industrial or electronic projects. Featuring gold or tin plating over phosphor bronze contacts, these connectors support up to 5.2A current per pin and operate within a temperature range of -55°C to +125°C. With certifications for RoHS and compliance with safety standards, they are ideal for compact electronic devices, industrial controls, and instrumentation applications. Secure your reliable connection today and optimize your project's performance.
Order your Samtec Series SLW11001GD connector today and ensure reliable electrical connections for your industrial or electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SLW11001GD?
You can click on the BUY or RFQ button to purchase SLW11001GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW11001GD?
You can download the SLW11001GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW11001GD?
SAMTEC
