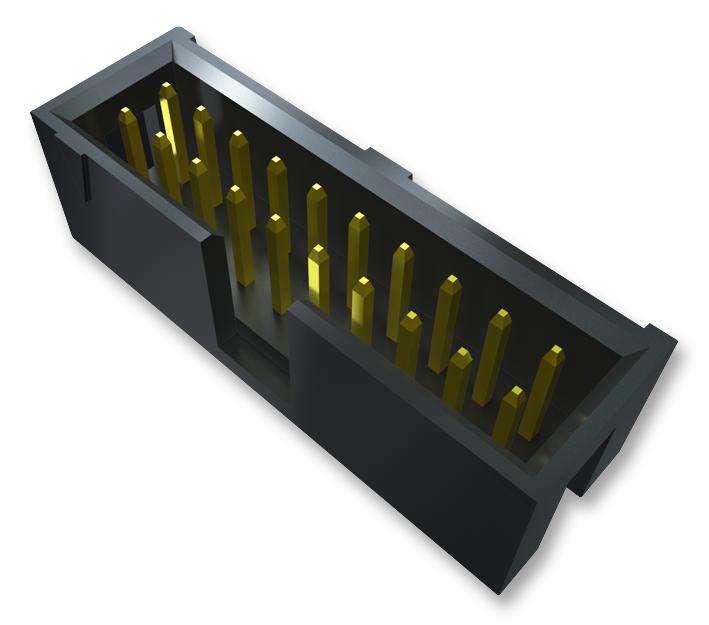

SAMTEC HTSS11702GD High-quality industrial connector
The HTSS11702GD is a high-quality, gold-flashed, through-hole connector series designed for industrial applications. Featuring matte tin on the tail and gold on the post, it provides excellent electrical conductivity and corrosion resistance. Suitable for surface mount and through-hole mounting, this connector supports a variety of configurations with flexible insulator materials and plating options. It operates within a temperature range of -55°C to +105°C, with a withstand voltage of 1000 VRMS, making it reliable for demanding environments. Available in standard and custom sizes, it ensures secure and longevity connections in complex systems.
SAMTEC HTSS11702GD High-quality industrial connector Specifications:
- Material: Phosphor Bronze
- Finish: Matte Tin on tail and gold on post
- Operating Temperature Range: -55°C to +105°C
- Withstanding Voltage: 1000 VRMS
- Surface Mount and Through-hole compatible
- Insulation Material: Polyester or PCT (not on -DV)
- Post Material: Au or Sn over Ni
- Pitch: 2.54 mm (0.100 inch)
- Number of Positions: Variable, configurable
- Lead Style: Through-hole and surface mount options available
- Insulation Resistance: 5000 MO min
- Mechanical stability enhanced with optional mechanical spacers
- Plating Options: Matte Tin, gold, or selective gold
- Sizes: Standard and custom configurations available
- Dimensions: Varies by configuration, typical height around 3.78 mm to 33.78 mm
Buy the Samtec HTSS11702GD – Reliable Connectors for Industrial Applications
Order the Samtec HTSS11702GD connector online today for robust, corrosion-resistant connections suitable for harsh environments. Featuring matte tin on the tail and gold on the post, it ensures excellent electrical conductivity. Easy to install with surface mount and through-hole options, its wide operating temperature range of -55°C to +105°C makes it ideal for industrial automation. With withstand voltage up to 1000 VRMS, bright gold or selective gold plating enhances contact durability. Purchase now for dependable connections tailored for demanding industrial applications.
Buy Samtec HTSS11702GD now and experience unmatched reliability and performance in high-demand environments.
Frequently Asked Questions
Where can I buy SAMTEC HTSS11702GD?
You can click on the BUY or RFQ button to purchase HTSS11702GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSS11702GD?
You can download the HTSS11702GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSS11702GD?
SAMTEC
