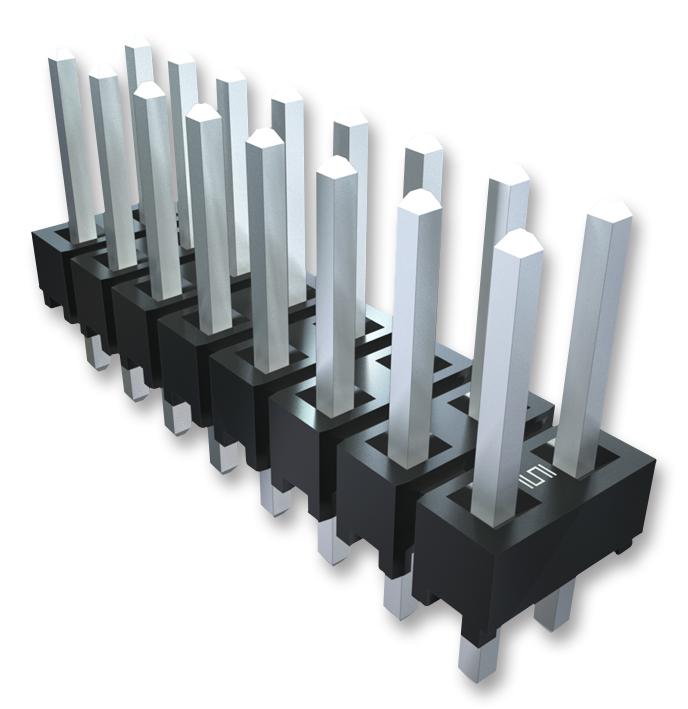

SAMTEC HTSW10411TS High-Temperature Terminal Headers
The HTSW series from Samtec comprises high-temperature terminal strip headers designed for reliable signal connections in demanding environments. Features include 0.025-inch (0.64mm) square posts, compatibility with multiple Samtec connector series like SSW, SSQ, and SSM, and insulation made from natural liquid crystal polymer. Operating within -55°C to +105°C, these headers feature phosphor bronze terminals with optional locking leads and clips for enhanced security. Available in single, dual, and triple row configurations, with various pin counts and straight or right-angle options, suitable for industrial, automation, and electronic applications requiring durability and precise pin spacing.
SAMTEC HTSW10411TS High-Temperature Terminal Headers Specifications:
- Post Size: 0.025 inch (0.64mm) square
- Material: Phosphor bronze terminals, natural liquid crystal polymer insulation
- Operating Temperature: -55°C to +105°C
- Voltage Rating: 550 VAC mated with SSW series, 450 VAC with other series
- Standards: UL Listed, CSA Certified, RoHS Compliant
- Locking Lead: Optional with -LL option
- Configurations: Single, dual, triple rows, straight and right-angle versions
- Pin Count: Varied, customizable per application
- Plating: Gold flash to tip, matte tin on tail, other plating options available
- Mating Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, and others
Buy the Samtec Series HTSW Terminal Headers: HTSW10411TS
Purchase the Samtec HTSW10411TS terminal headers online today and enjoy dependable signal integrity and durability in demanding industrial environments. These headers are ideal for applications requiring high-temperature operation from -55°C to +105°C. Designed with 0.025-inch square posts and compatible with a wide range of Samtec connectors, they provide secure, reliable connections. Available in multiple configurations, including straight and right-angle styles, with optional locking leads, these headers ensure robust performance for your electronic and industrial projects. Order now to benefit from fast delivery and expert support.
Buy Samtec HTSW10411TS now and experience unmatched reliability and performance in high-temperature connections.
Frequently Asked Questions
Where can I buy SAMTEC HTSW10411TS?
You can click on the BUY or RFQ button to purchase HTSW10411TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part HTSW10411TS?
You can download the HTSW10411TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of HTSW10411TS?
SAMTEC
