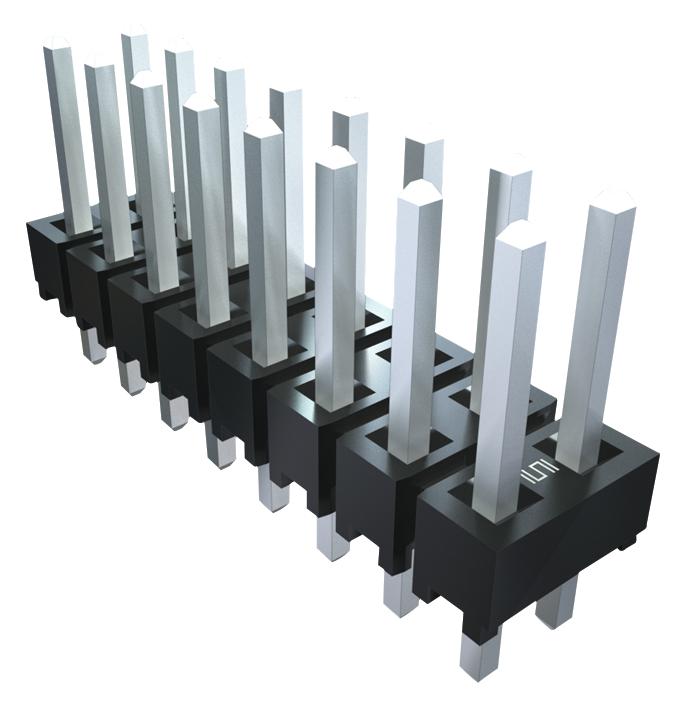

SAMTEC HTSW13224LDLL High-Temperature Terminal Header
The HTSW series from Samtec is a line of high-temperature terminal strip headers designed for reliable electrical connections. These unshrouded through-hole headers feature 0.025 inch (0.635 mm) square posts and are compatible with various Samtec connector series, including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. They offer a wide range of pin counts, terminal lengths, configurations such as single or multiple rows, and a pitch spacing of 2.54 mm. Made with phosphor bronze contacts plated with 10-micrometer gold and natural liquid crystal polymer insulators, they operate from -55°C to 125°C. Optional locking features enhance retention, making them suitable for high-reliability industrial applications. Approved by UL and CSA standards.
SAMTEC HTSW13224LDLL High-Temperature Terminal Header Specifications:
- Insulator Material: TSW: Black Glass Filled Polyester, HTSW: Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: 10-micrometer Gold over Sn
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- Current Rating: Up to 6.3 A per pin depending on configuration
- Pin Pitch: 2.54 mm
- Pin Size: 0.025 inches (0.635 mm) square posts
- Configurations: Single, dual, or multiple rows; straight and right-angle options
- Certifications: UL E111594, CSA 090871
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (Wave Soldering for TSW, optional for HTSW)
