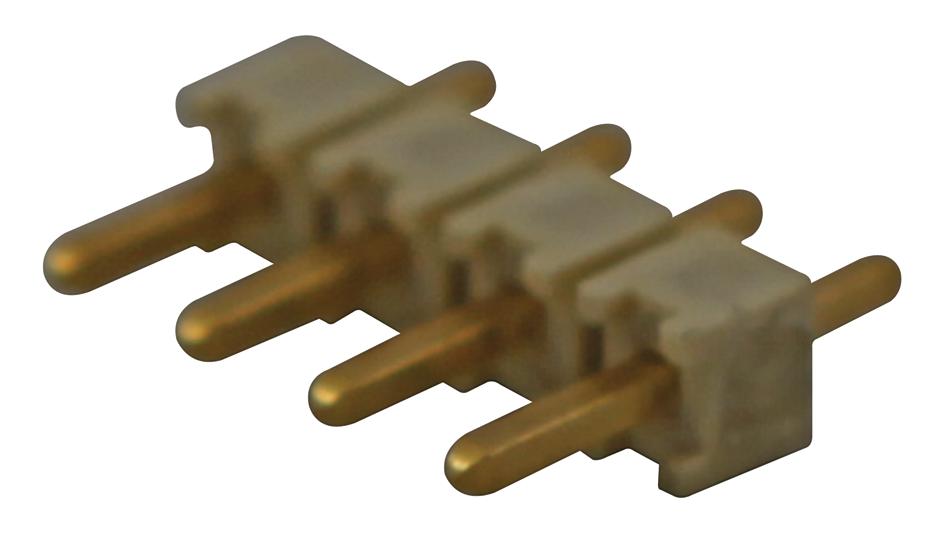

SAMTEC HTSW20815GSLL Industrial Through-Hole Pin Header
The HTSW-115-05-L-Q is a high-reliability, through-hole pin header designed for industrial applications, featuring a natural liquid crystal polymer insulator and phosphor bronze terminal material. Operating within -55°C to +105°C with tin plating and up to +125°C with gold plating, it offers a voltage rating of 550 VAC when mated with SSW connectors. RoHS compliant and lead-free, this connector supports various configurations, including elevated right-angle options and shunts, suitable for versatile electronic assemblies requiring robust electrical connections and thermal stability.
SAMTEC HTSW20815GSLL Industrial Through-Hole Pin Header Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ
- Ni (Nickel)
- Operating Temp Range: -55°C to +105°C (Tin), -55°C to +125°C (Gold)
- Voltage Rating: 550 VAC with SSW, 500 VAC with ESQ/BCS, 450 VAC with RA/RE, 400 VAC with other configurations
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Current Rating: 15.2 A at 0.8
- 25.4 A at 1.0" ,
- 30.0 A at 1.25" ,
- Depending on model and configuration
- Pin Center: 2.54 mm (0.100") , 5.08 mm (0.200")
- Connector Style: Through-hole, right-angle, elevated options available
- Other Options: Shunts, locking leads, and various plating modifications
- Configuration: 2 positions, multiple terminal styles, and lengths
- Certifications: RoHS compliant, UL listed optional
- Operating Voltage: 400-550 VAC based on mating connector
- Designs and specifications are subject to change without notice
Buy the Samiec HTSW-115-05-L-Q – Reliable Industrial Through-Hole Pin Header for Electronics
Discover the durable and versatile industrial through-hole pin header designed for demanding electronic applications. The HTSW-115-05-L-Q offers a natural liquid crystal polymer insulator, phosphor bronze terminals, and various plating options like gold or tin over nickel, supporting high temperatures from -55°C to +125°C. With a voltage rating up to 550 VAC, RoHS compliance, and customizable configurations, this connector ensures secure, efficient, and reliable electrical connections, making it ideal for rugged industrial and electronic equipment demanding durability and precise performance.
Buy Samiec HTSW-115-05-L-Q now and experience unmatched reliability and performance for your industrial electronic assemblies.
