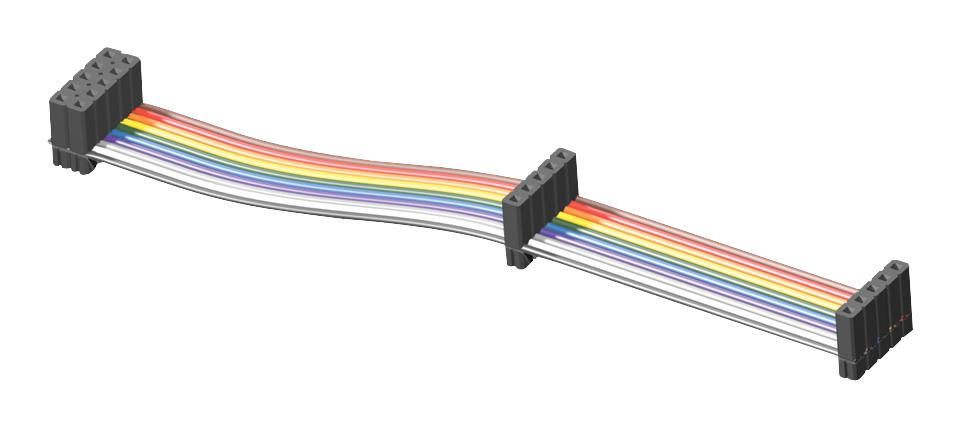

SAMTEC IDSD13D0400 IDC Flat Ribbon Cable Assembly
The IDSD series from Samtec features 2.54mm pitch slim-body, double-row IDC flat ribbon socket cable assemblies suitable for industrial applications. These durable, versatile assemblies support configurations like single-ended, double-ended, and transfer end, compatible with various connectors and wiring options such as polarizing keys, stripped wires, daisy chaining, and reversed wiring. With UL qualification, they offer pin counts from 4 to 72, contact resistance of 15 milliohms, and operate between -20°C and +105°C. Made with black glass-filled polyester insulators and BeCu contacts, they utilize 28 AWG stranded tinned copper wire, rated at 3.4A per pin for reliable, long-lasting performance.
SAMTEC IDSD13D0400 IDC Flat Ribbon Cable Assembly Specifications:
- Pitch: 2.54mm (.100 inch)
- Configuration: Single-ended, double-ended, transfer end
- Contact Resistance: 15 milliohms
- Wire: 28 AWG stranded tinned copper
- Insulator Material: Black glass-filled polyester
- Contact Material: BeCu with options for gold or tin plating
- Temperature Range: -20°C to +105°C (rainbow cable), -40°C to +105°C (gray cable)
- Pin Counts: 4 to 72
- Rated Current: 3.4A per pin
- Operation: Compatible with various mating connectors such as TST, HTST, ZST, BST, EJH
- Minimum assembled length: 2 inches, tolerance ±1/8 inch
- RoHS compliant
- Certifications: UL Listed E111594
Buy the Buy Samtec IDSD Series Part Number IDSD13D0400 Online
Purchase the Samtec IDSD series IDC flat ribbon cable assemblies online for reliable connectivity in industrial electronics. Featuring a 2.54mm pitch, they support configurations from single to double-ended connections. Made with black glass-filled polyester insulators and BeCu contacts, these assemblies include options for gold or tin plating, and operate efficiently within a temperature range of -20°C to +105°C. With UL qualification and rated for 3.4A per pin, they ensure durability, versatility, and superior performance across diverse applications. Order now for fast delivery today.
Get Samtec IDSD series cable assemblies today—designed for industrial reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC IDSD13D0400?
You can click on the BUY or RFQ button to purchase IDSD13D0400 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IDSD13D0400?
You can download the IDSD13D0400 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IDSD13D0400?
SAMTEC
