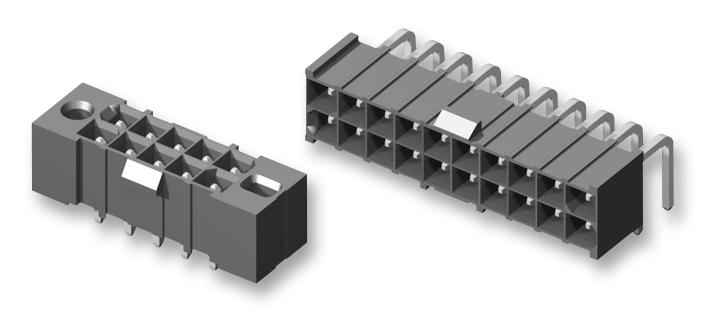

SAMTEC IPBT105H1TDGP Power Connector
The IPBT105H1TDGP is a high-quality, RoHS-compliant rectangular connector designed for reliable mating in industrial applications. Crafted from high copper alloy and black liquid crystal polymer insulator, it features a secure latching mechanism, polarized guide post, and shrouded pins for enhanced durability and safety. Rated for up to 10.3 A per contact and operating over a temperature range of -55°C to +105°C, this connector is suitable for high-current, short-term power connections. Its versatile size options and precise dimensions make it ideal in complex electronic and industrial systems.
SAMTEC IPBT105H1TDGP Power Connector Specifications:
- Material: Black Liquid Crystal Polymer insulator, High Copper Alloy contacts
- Voltage Rating: 565 V
- Current Rating: 10.3 A per contact
- Operating Temperature Range: -55°C to +105°C
- Contact Finish: Sn over 50 µ
- 1.27 µm) Ni
- Pin Count: 16 positions with dimension 4.19 mm (0.165 inches)
- Mating Height: 15.25 mm (Hi/-01), 16.84 mm (other sizes), processing conditions affect height
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Certifications: Recognized for quality standards
- Design: Shrouded contacts, polarized guide post option, keyed polarization
- Additional sizes and lead styles available; note some non-standard and non-returnable styles
Buy the Samtec IPBT105H1TDGP – Reliable Power Connector for Industrial Applications
Buy the Samtec Power Connector designed for industrial and electronic systems today. This high-current, RoHS-compliant connector features durable shrouded pins, a reliable latching mechanism, polarized guides, and excellent thermal stability. Perfect for applications requiring stable, short-term power connections, its versatile size and high-quality materials ensure durability and safety. Order online now to enhance your project’s electrical reliability and compliance with industry standards, and enjoy fast shipping, excellent support, and competitive pricing for your industrial or electronic needs.
Order your Samtec Series IPBT105H1TDGP today and secure highly durable, high-current connectors suitable for demanding industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC IPBT105H1TDGP?
You can click on the BUY or RFQ button to purchase IPBT105H1TDGP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPBT105H1TDGP?
You can download the IPBT105H1TDGP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPBT105H1TDGP?
SAMTEC
