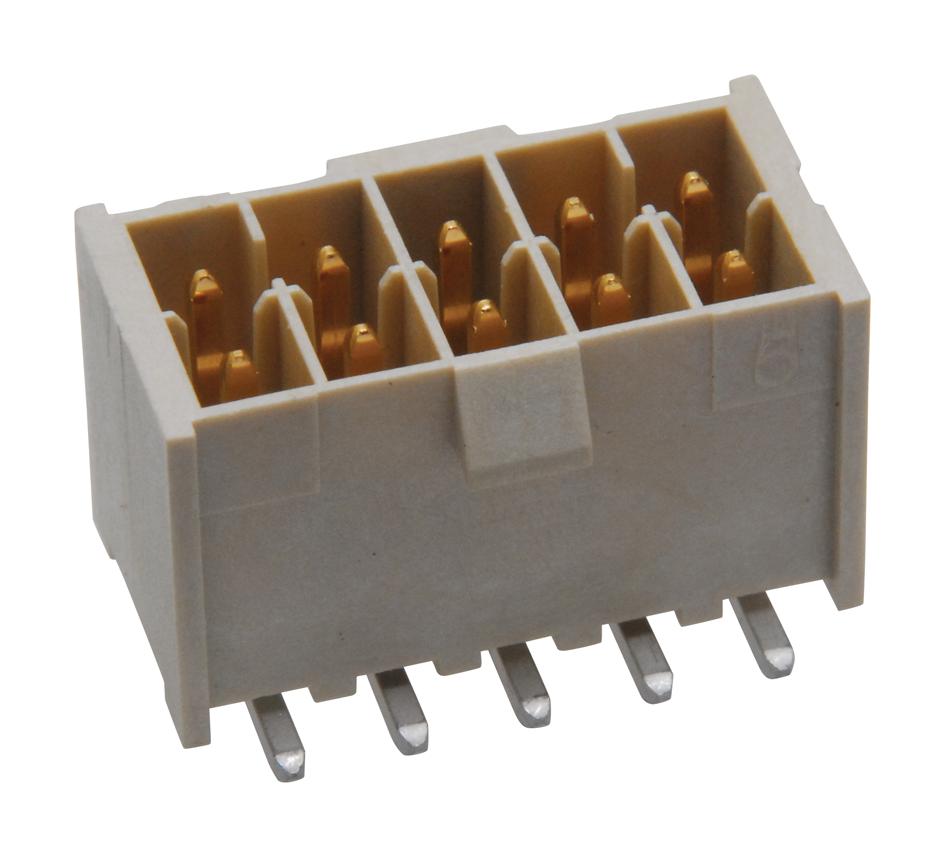

SAMTEC IPL110301LDK Discrete Wire Header
The IPL1 series is a high-quality, surface-mount discrete wire header designed for reliable electrical connections in electronic assemblies. Constructed with natural LCP insulators and phosphor bronze terminals plated with Sn or Au over Ni, it offers excellent temperature resistance from -55°C to +125°C. Rated at 675 VAC and 954 VDC, this connector features various sizes, options, and polarization options, including guide post holes and weld tabs. Suitable for through-hole and right-angle PCB mounting, it ensures secure mating with mates like MMSD and MMSS, ideal for space-constrained, high-reliability applications.
SAMTEC IPL110301LDK Discrete Wire Header Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ" Ni
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 675 VAC / 954 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Sizes: 02, 04, 06, 08, 10, 12, 15, 16, 20, 25 positions
- Max Coplanarity (SMT Lead): 0.10 mm (.004"), 0.15 mm (.006") for different styles
- Approvals: Various recognized quality standards
- Mounting Types: Surface mount, right-angle, elevated, through-hole
- Additional Features: Guide post holes, polarization options, weld tabs
- Temperature Range: -55°C to +125°C
- Certifications: RoHS compliant
- Voltage Rating: 675 VAC / 954 VDC
Buy the Samtec Series IPL1 Discrete Wire Header: IPL110301LDK
Purchase the Samtec IPL110301LDK discrete wire header online today to ensure your electronic assembly benefits from secure, reliable connections. Designed with natural LCP insulators and phosphor bronze terminals, it offers excellent temperature tolerance from -55°C to +125°C, suitable for a variety of mounting configurations including surface-mount and through-hole. The compact design features polarization options and guide post holes for enhanced alignment. Rated at 675 VAC / 954 VDC, it meets RoHS standards, providing a dependable, long-lasting solution for your high-reliability applications.
Get Samtec IPL110301LDK today—engineered for high-reliability and versatile PCB mounting options.
Frequently Asked Questions
Where can I buy SAMTEC IPL110301LDK?
You can click on the BUY or RFQ button to purchase IPL110301LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110301LDK?
You can download the IPL110301LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110301LDK?
SAMTEC
