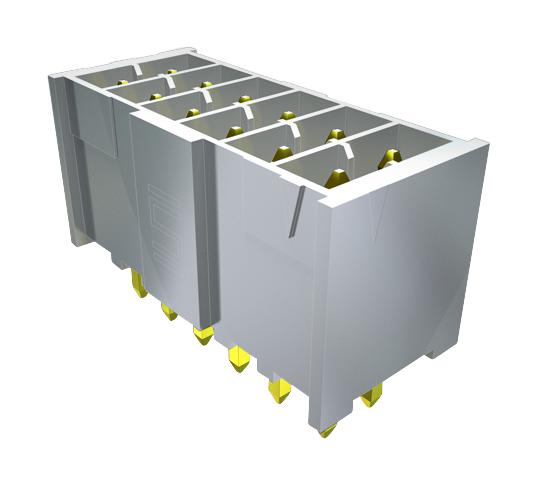

SAMTEC IPL110601LDK Wire Header
The IPL1 Series is a versatile discrete wire header featuring a 2.54 mm pitch, suitable for surface mount, right-angle, and vertical through-hole applications. Constructed with natural LCP insulators and phosphor bronze terminals, it offers high-voltage ratings up to 675 VAC and operating temperatures ranging from -55°C to +125°C. RoHS compliant and lead-free, this connector accommodates various sizes and polarizations, including guide post holes and optional welding tabs, making it ideal for reliable cable-to-board connections in diverse electronic assemblies.
SAMTEC IPL110601LDK Wire Header Specifications:
- Insulator Material: Natural LCP
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" Ni
- Operating Temperature Range: -55°C to +125°C
- Voltage Rating: 675 VAC / 954 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 2.54 mm (0.100")
- Sizes: 02, 04, 06, 08, 10, 12, 15, 16, 20, 25 positions
- Lead Styles: S & -D (02 Lead Style)
- SMT Lead Coplanarity: max 0.10 mm (0.004") with stencil options
- Surface Mount, right-angle, elevated, vertical through-hole options
- Guide post holes, polarization features, optional weld tabs
- Some styles are non-standard, non-returnable
Buy the Samtec Series IPL1 Discrete Wire Header: IPL110601LDK
Purchase the Samtec IPL1 series wire header online today to enjoy high-quality, RoHS compliant connectors designed for versatile electronic applications. With a 2.54 mm pitch, these connectors are suitable for surface-mount, right-angle, and vertical through-hole configurations, providing secure, reliable connections in various environments. Constructed with natural LCP insulators and phosphor bronze terminals, they deliver exceptional performance with high voltage ratings up to 675 VAC and operating temperatures from -55°C to +125°C. Easy to install and available in multiple sizes, order now for seamless integration into your electronic assemblies.
Get Samtec IPL1 series IPL110601LDK today—built for reliable cable-to-board connections and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC IPL110601LDK?
You can click on the BUY or RFQ button to purchase IPL110601LDK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPL110601LDK?
You can download the IPL110601LDK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPL110601LDK?
SAMTEC
