SAMTEC IPT111501SD High-Density Connector
The IPT1-110-04-L-D is a high-performance, individually shrouded connector designed for versatile electronic applications. Made with black LCP insulators and phosphor bronze contacts, it features tin or gold plating for enhanced durability. Operating within -55°C to +125°C, it supports up to 15.9A current, with voltage ratings up to 775 VAC/1095 VDC. Suitable for surface mount and through-hole configurations, it ensures secure connections with optional locking clips. Compatible with high-density PCB designs, it offers reliable contact wiping distances and excellent mechanical stability for demanding electronic assemblies.
SAMTEC IPT111501SD High-Density Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over SOU (1.27 μm) Ni
- Operating Temperature Range: -55°C to +125°C
- Current Rating: 15.9A
- Voltage Rating: 775 VAC / 1095 VDC
- Insertion Force (SMT): 2.0 oz (0.83 N)
- Withdrawal Force (SMT): 2.6 oz (0.72 N)
- Insertion Force (Through-Hole): 6.0 oz (1.67 N)
- Withdrawal Force (Through-Hole): 5.0 oz (1.39 N)
- Wiping Distance: 0.38 mm (.015")
- Operating Temp Range: -55°C to +125°C with Gold plating
- Supported Mounting: Surface Mount and Through-Hole
- RoHS Compliant: Yes
- Compatible with locking clips and optional polarization features
- Pin Spacing: 2.54 mm (.100")
- Maximum Lead Coplanarity: 0.005" (.13 mm)

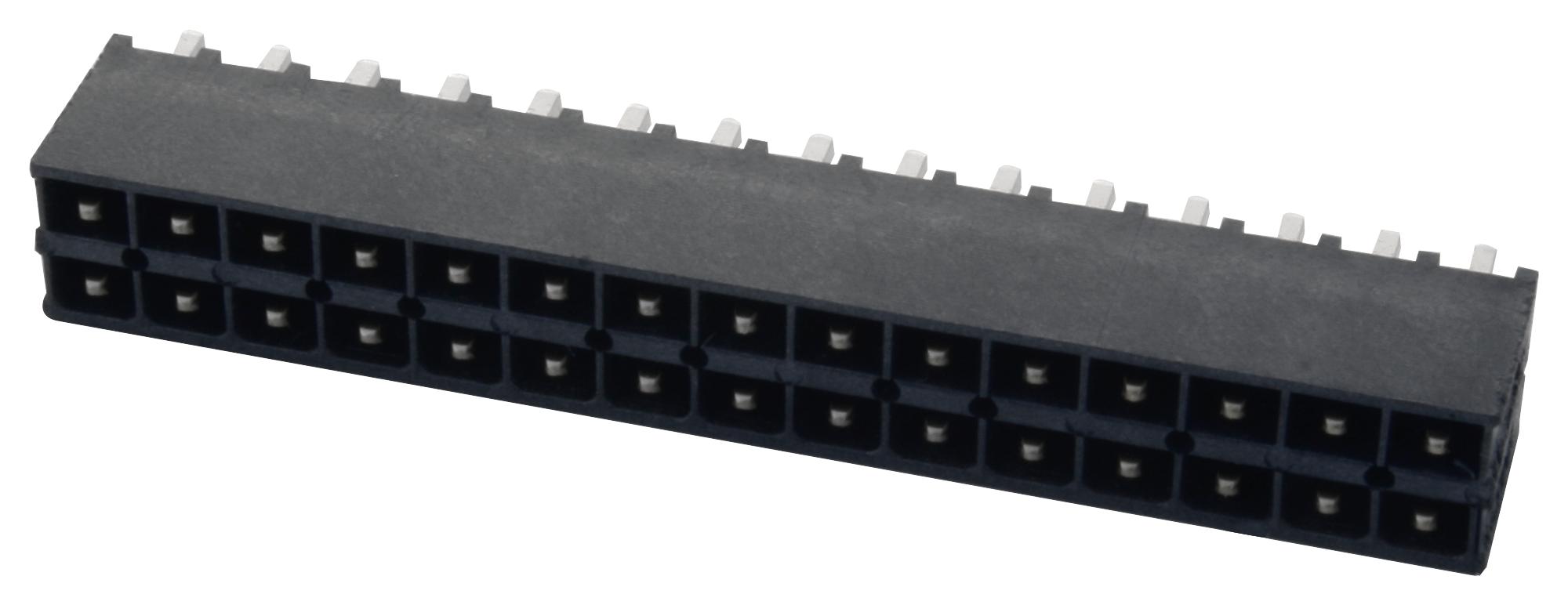

Buy the Samtec Series IPT1: IPT1-110-04-L-D Connector
Enhance your electronic assemblies with the Samtec IPT1-110-04-L-D connector, engineered for versatility and durability. Featuring individually shrouded contacts with optional locking clips, it supports surface mount and through-hole mounting for flexible design integration. Made with high-quality phosphor bronze and plated with tin or gold, it offers excellent electrical performance with a 15.9A current rating and voltage up to 775 VAC. RoHS compliant, this connector ensures secure, reliable connections under demanding thermal and mechanical conditions, ideal for high-density PCB applications.
Get Samtec IPT1-110-04-L-D connector today—built for reliable electrical connections and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC IPT111501SD?
You can click on the BUY or RFQ button to purchase IPT111501SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPT111501SD?
You can download the IPT111501SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPT111501SD?
SAMTEC
