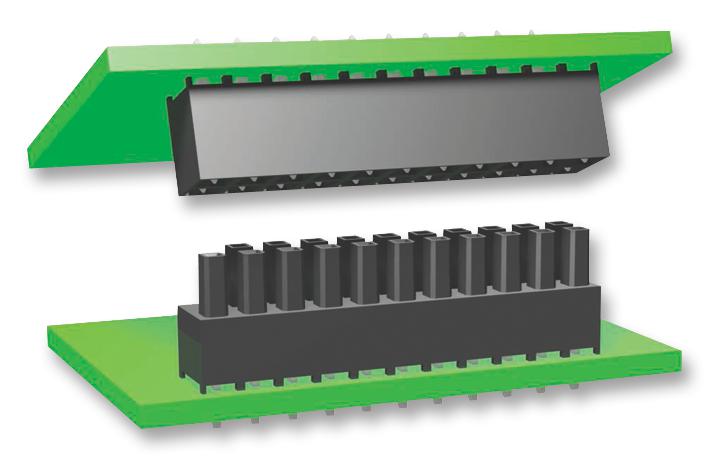

SAMTEC IPT112501SDRA Shrouded Connector
The IPT1 series includes individually shrouded connectors with black LCP insulators and phosphor bronze contacts plated with Sn or Au over Ni. Suitable for SMT and through-hole mounting, they operate within -55°C to +125°C, offering current ratings up to 15.9A and voltage ratings up to 1095 VDC. With optional locking clips and polarized no.1 position, these connectors provide secure electrical connections, RoHS compliance, and high durability. Compatible with various sizes and configurations for versatile electronic assembly and reliable performance in complex systems.
SAMTEC IPT112501SDRA Shrouded Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni (1.27 μm)
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 3.81 mm to 6.48 mm
- Current Rating: Up to 15.9A per contact
- Voltage Rating: 1095 VDC / 775 VAC
- Wiping Distance: 0.38 mm
- Insertion Force (SMT): 2.0 oz (0.83 N)
- Withdrawal Force (SMT): 3.6A
- Insertion Force (T/H): 6.0 oz (1.67 N)
- Withdrawal Force (T/H): 5.0 oz (1.39 N)
- RoHS Compliant: Yes
- Processing: Suitable for SMT, Through-Hole, Right Angle, Surface Mount
- Dimensions: Various sizes; min pitch 2.54 mm (0.100")
- Locking clip option available
- No.1 polarized position for secure mating
Buy the Buy Samtec IPT1 Series Part Number IPT112501SDRA Online
Purchase the Samtec IPT1 shrouded connector online today for reliable, high-performance electrical connections. Designed for versatility, it features individually shrouded contacts, optional locking clips, and supports various mounting styles including SMT and through-hole. With a high current rating of up to 15.9A and voltage up to 1095 VDC, this connector ensures stable power and signal transfer in demanding environments. RoHS compliant and suitable for diverse applications, it guarantees durability, safety, and ease of installation for your electronic projects.
Get Samtec IPT112501SDRA today—built for secure connections and high current capacity in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC IPT112501SDRA?
You can click on the BUY or RFQ button to purchase IPT112501SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part IPT112501SDRA?
You can download the IPT112501SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of IPT112501SDRA?
SAMTEC
