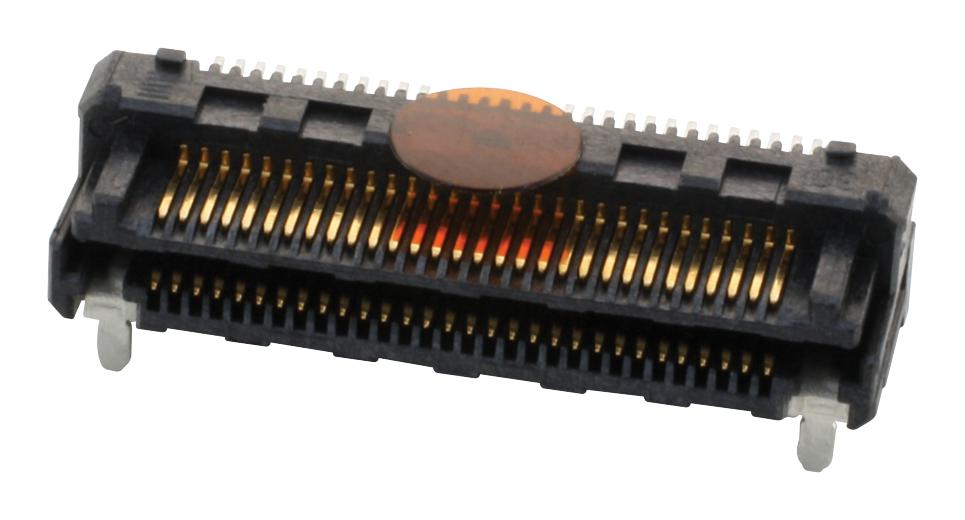

SAMTEC LSHM13001LDHANKTR Self Mating Connectors
The Razor Series Self-Mating Connectors offer high-density, precision interconnection solutions with a pitch of 0.50 mm. Featuring multiple stack height options from 5.00 mm to 12.00 mm, these connectors are ideal for compact circuit board applications. They include features like audible click mating, shield and lubricated options, and support for parallel, perpendicular, and coplanar systems. Suitable for electronic assemblies requiring reliable, high-force micro-pitch connections, they are engineered for durability and easy mating in demanding environments.
SAMTEC LSHM13001LDHANKTR Self Mating Connectors Specifications:
- Pitch: 0.50 mm (0.0197 inches)
- Stack height options: 5.00 mm to 12.00 mm
- Current per pin: LSHM: 2.0 A, LSEM: 1.8 A, LSS: 1.7 A
- Insulator: Black LCP
- Temperature rating: -55°C to +125°C
- Material: Nickel-Neal plated contacts
- Design: Self-mating, shield and lubricated options available
- Contact style: Right-angle, with gold flash or matte tin finish
- Reel packaging: Available in full reel quantities
- Compatibility: Parallel, perpendicular, coplanar systems
Buy the Razor Series Self Mating Connectors: LSHM13001LDHANKTR
Discover the reliable and space-saving Razor Series Self Mating Connectors, designed with a 0.50 mm pitch for high-density electronic assemblies. Available in various stack heights from 5.00 mm to 12.00 mm, these connectors feature an audible click for secure mating, optional shield and lubrication features, and support for multiple system orientations like parallel, perpendicular, and coplanar configurations. Engineered for durability, they ensure high-force, dependable connections suited for compact and demanding electronic devices. Purchase online now for fast delivery and technical support.
Order your Samtec Razor Series Self Mating Connectors today and ensure reliable high-density connections for demanding electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC LSHM13001LDHANKTR?
You can click on the BUY or RFQ button to purchase LSHM13001LDHANKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM13001LDHANKTR?
You can download the LSHM13001LDHANKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM13001LDHANKTR?
SAMTEC
