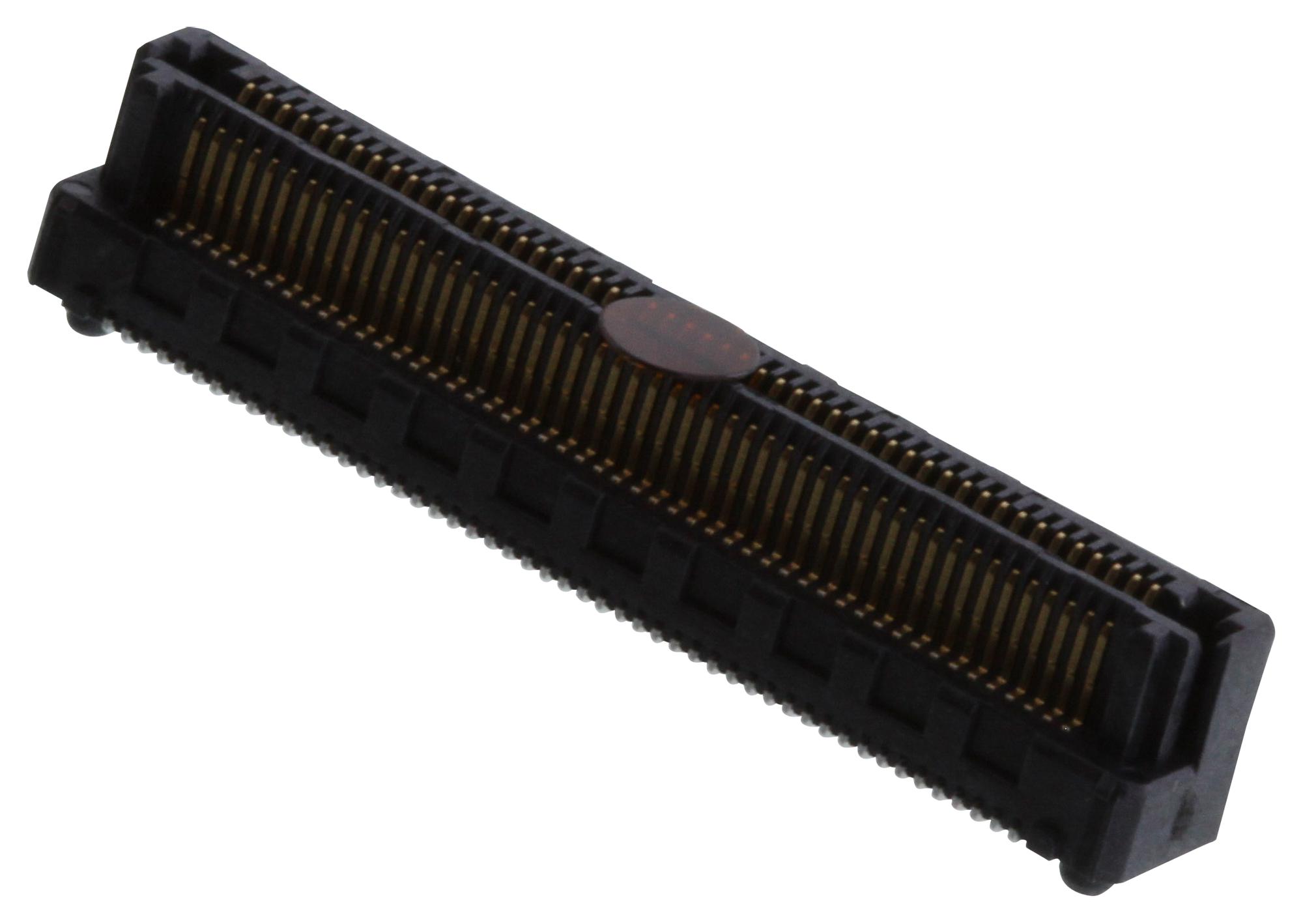

SAMTEC LSHM150040LDVANKTR Hermaphroditic Strip Connector
The LSHM series hermaphroditic strip connectors feature high-density design with black liquid crystal polymer insulators and phosphor bronze contacts. Operating from -55°C to +125°C, they support 2.0A per pin, are RoHS compliant, and suitable for high-speed applications. These connectors offer slim, stackable configurations, self-mating system with audible locking click, and compatibility with power/signal solutions like UMPT/UMPS. Designed for reliable PCB connections in demanding electrical and electronic systems, they provide flexibility and performance in diverse deployment scenarios.
SAMTEC LSHM150040LDVANKTR Hermaphroditic Strip Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ" (1.27 μm) Ni
- Current Rating: 2.0A per pin (2 adjacent pins powered)
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (.004") max
- Board Stacking: For multiple connectors per board, contact samtec.com
- Height options range from 3.0 mm to 12.0 mm with various lead styles and contact configurations
- Compatibility: Compatible with flexible two-piece power/signal solutions like UMPT/UMPS
- Rated for high-speed signal transmission, with features like audible click and self-mating system
Buy the Samtec Series LSHM Hermaphroditic Strip Connector: LSHM150040LDVANKTR
Order the Samtec LSHM150040LDVANKTR hermaphroditic strip connector online today to ensure your electronics are equipped with reliable, high-density, high-speed connectors. These connectors feature liquid crystal polymer insulators, phosphor bronze contacts, and multiple height options for flexible deployment. Designed for demanding applications, they support 2.0A per pin, operate from -55°C to +125°C, and are RoHS compliant. Perfect for PCB multilayer systems, they reduce inventory costs with self-mating features and ensure secure, quick connections with audible clicking. Purchase now for impeccable performance.
Buy Samtec LSHM150040LDVANKTR hermaphroditic strip connector now and experience unmatched reliability and performance in high-density electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC LSHM150040LDVANKTR?
You can click on the BUY or RFQ button to purchase LSHM150040LDVANKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM150040LDVANKTR?
You can download the LSHM150040LDVANKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM150040LDVANKTR?
SAMTEC
