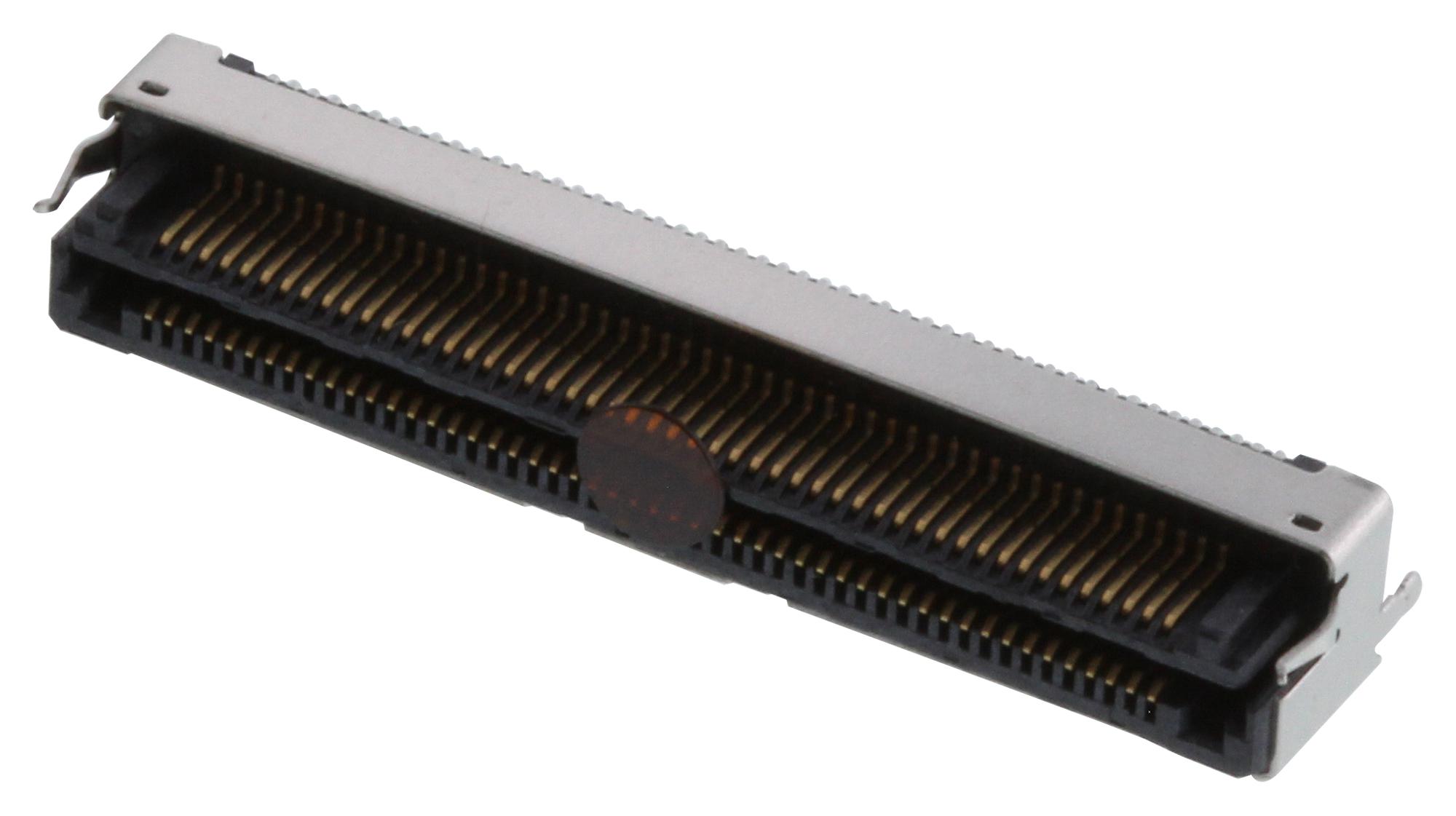

SAMTEC LSHM150040LDVASKTR High-Density Hermaphroditic Connector
The LSHM-DV series are high-density, hermaphroditic, surface-mount connectors designed for high-speed signal and power applications. Constructed with black liquid crystal polymer insulators and phosphor bronze contacts, these connectors feature gold or tin plating over nickel, supporting current ratings of 2.0A per pin. Operating within -55 °C to +125 °C and RoHS compliant, they provide efficient, reliable connections with optional shielding, low profile height, and compatibility with flexible power/signal solutions for modern PCB designs. Suitable for high-density, cost-effective, and high-speed interconnects.
SAMTEC LSHM150040LDVASKTR High-Density Hermaphroditic Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold or Sn over 50 μ" Ni
- Current Rating: 2.0A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm
- Board Mating: Optional shielding, high-speed channel performance
- Height Range: 3.0 mm to 12.0 mm based on style and options
- Connector Style: Standard and ruggedized options for high retention, low profile
Buy the Buy Samtec LSHM Series Part Number LSHM150040LDVASKTR Online
Enhance your PCB designs with the high-density, hermaphroditic connectors from Samtec. Designed with black liquid crystal polymer insulators and phosphor bronze contacts, these connectors deliver reliable, high-speed connections capable of handling 2A per pin. Operating from -55°C to +125°C and RoHS compliant, they support low-profile, cost-effective solutions for modern electronics. With optional shielding and compatibility with flexible power and signal configurations, these connectors ensure robust performance in demanding environments. Purchase online now for fast delivery and superior interconnect reliability.
Buy Samtec LSHM150040LDVASKTR now and experience unmatched high-speed performance and reliable high-density connections.
Frequently Asked Questions
Where can I buy SAMTEC LSHM150040LDVASKTR?
You can click on the BUY or RFQ button to purchase LSHM150040LDVASKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part LSHM150040LDVASKTR?
You can download the LSHM150040LDVASKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of LSHM150040LDVASKTR?
SAMTEC
