SAMTEC LSS14002LDVA Fine Pitch Connector
The LSS14002LDVA is a high-density, self-mating, low-profile connector designed for fine pitch applications in electronic assemblies. Offering pitches of 0.50 mm, 0.635 mm, or 0.80 mm, it features an insulator made of black LCP with phosphor gold or tin over 50 microns on the contact areas. The connector supports a maximum operating temperature of +125°C and has an operating current of 1.7-2.0 A per pin, ensuring reliable electrical performance in rugged environments. Its slim, coplanar, and perpendicular configurations make it suitable for compact, high-density designs with optional shield and lubrication features for enhanced performance.
SAMTEC LSS14002LDVA Fine Pitch Connector Specifications:
- Pitch: 0.50 mm, 0.635 mm, or 0.80 mm
- Insulator Material: Black LCP (Liquid Crystal Polymer)
- Contact Plating: Phosphor gold or tin over 50 microns
- Operating Temperature Range: -55°C to +125°C
- Max Current per pin: 1.7-2.0 A
- Stack Height Options: 5.00 mm to 12.00 mm
- Contact Diameter: 0.138" (3.50 mm)
- Mounting Style: Vertical or right-angle
- Reels: Tape & Reel options available for automated placement
- Compatibility: Shield and lubricated options available for rugged environments
- Durability: Audible click when mated, designed for repeated mating cycles
- Certifications: Designed according to Samtec specifications, subject to change

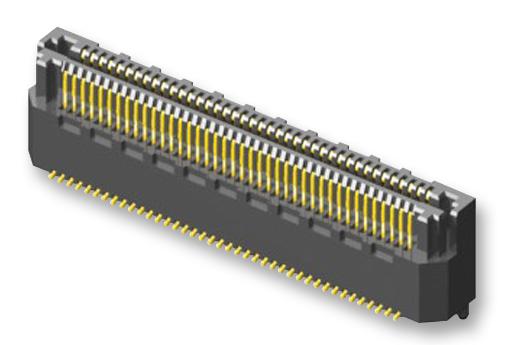

Buy the Samtec Series Razor Fine Pitch Connectors: LSS14002LDVA
Enhance your electronic assembly with the Samtec Series Razor fine pitch connector. Featuring pitches of 0.50 mm, 0.635 mm, or 0.80 mm, it offers quick mating with an audible click, reliable high-current performance, and options for shield and lubrication. Its slim profile and high coplanarity support compact device designs, making it ideal for demanding applications. Order online today to experience the ease of automation and ensure your projects benefit from durable, high-quality interconnections designed for rugged environments and high-density layouts.
Order your Samtec Series Razor LSS14002LDVA high-density connector today and ensure reliable performance for your advanced electronic projects.
