SAMTEC MEC611002SDRA1 High-Speed Data Connector
The MEC6-RA Series is a high-performance, compact connectors designed for single-ended and differential pair signaling applications. Engineered with a black LCP insulator and phosphor bronze contacts, it offers excellent electrical performance at frequencies up to 22 Gbps in differential mode and 20 Gbps in single-ended mode. Operating over temperatures from -55°C to +125°C, these connectors are compatible with 1.60 mm thick PCBs, with various lead and position options. Ideal for space-constrained environments demanding reliable high-speed data transmission and RoHS compliance.
SAMTEC MEC611002SDRA1 High-Speed Data Connector Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Black LCP
- Plating: Au or Sn over 50u" Ni
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 1.66" to 1.41"
- Voltage Rating: 195 VAC
- Pitch: 0.635 mm
- Positions: 10, 20, 30, 40
- Maximum Signal Frequencies: 7.0 GHz/14 Gbps (single-ended), 11.0 GHz/22 Gbps (differential)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatible with 1.60 mm thick PCBs

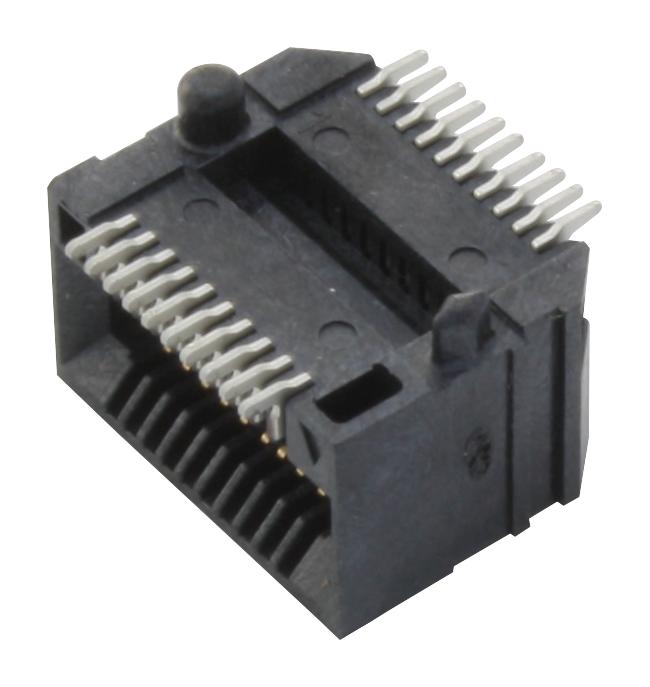

Buy the Samtec Series MEC6 High-Speed Connectors: MEC6-130-02-L-D-RA1
Purchase the high-performance Samtec MEC6-130-02-L-D-RA1 connector online today. Designed for reliable high-speed data transfer, it features robust construction, RoHS compliance, and excellent electrical characteristics at frequencies up to 22 Gbps. Perfect for space-constrained PCB applications, it supports 1.60 mm thick boards with multiple lead and position options. Ensure your electronic designs achieve optimal performance with this durable, lead-free connector that offers consistent high-frequency operation and ease of installation in demanding environments.
Get Samtec MEC6-130-02-L-D-RA1 today—built for high-speed data transmission in compact, space-efficient designs.
Frequently Asked Questions
Where can I buy SAMTEC MEC611002SDRA1?
You can click on the BUY or RFQ button to purchase MEC611002SDRA1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MEC611002SDRA1?
You can download the MEC611002SDRA1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MEC611002SDRA1?
SAMTEC
