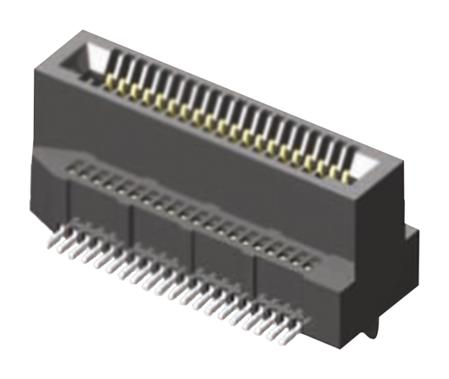

SAMTEC MEC811002LDRA1 High-Density Electronic Connector
The MEC8 series features low-profile, high-density connectors made from black LCP insulator material with phosphor bronze contacts. Plated with Au or Sn over Ni, these connectors support operating temperatures from -55°C to +125°C. They offer insertion depths from 3.94 mm to 6.25 mm and current ratings between 2.2 A and 2.4 A per pin. Designed for RoHS compliance, they are suitable for high-reliability electronic applications requiring secure, solderable connections with precise and flexible configurations.
SAMTEC MEC811002LDRA1 High-Density Electronic Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ
- 1.27
- µm
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 3.94 mm to 6.25 mm
- Current Rating: 2.2 A to 2.4 A per pin
- Voltage Rating: 265 VAC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Number of Positions: Varies from 10 to 70
- Compatible with high-density PCB layouts
- Mating card thickness options available: 1 mm, 1.5 mm, 2 mm
- RoHS compliant and suitable for sensitive electronic applications
- Designed for secure connections with latching and elevated options
- Can support diverse configurations with partial or full row arrangements
Buy the Samtec MEC8 – Reliable Connector for Industrial Applications
Purchase the Samtec MEC8 series connector online today and benefit from high-quality, RoHS compliant connectors with precise dimensions and robust materials. These connectors feature phosphor bronze contacts with gold or tin over nickel plating, supporting operating temperatures from -55°C to +125°C. Designed for versatility, they support various insertion depths, configurations, and mounting options, making them ideal for complex electronic assemblies. Order now to secure fast, dependable delivery for your manufacturing or repair needs, ensuring your projects meet the highest standards for performance and reliability.
Order your Samtec MEC8 series connector today and ensure reliable, secure connections for your high-density electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MEC811002LDRA1?
You can click on the BUY or RFQ button to purchase MEC811002LDRA1 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MEC811002LDRA1?
You can download the MEC811002LDRA1 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MEC811002LDRA1?
SAMTEC
