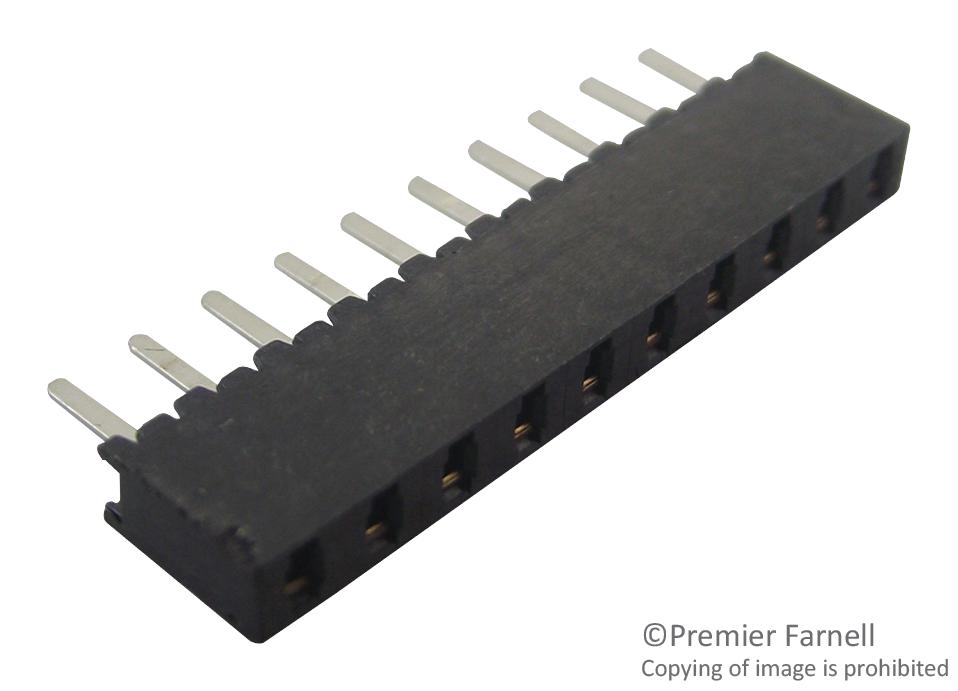

SAMTEC MMS11001LSV Multi-Pin Connector
The MMS11001LSV is a high-current, multi-pin connector designed for industrial applications, featuring phosphor bronze contacts with Sn or Au over Ni plating. It operates efficiently within a temperature range of -55°C to +125°C with gold plating and -55°C to +105°C with tin, ensuring durability in demanding environments. This connector supports pass-through and backplane configurations, with optional polarization and locking clips for secure connections. Its compact design with multiple contact positions makes it ideal for high-density electronics, offering low contact resistance and robust soldering capabilities for reliable performance.
SAMTEC MMS11001LSV Multi-Pin Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Ni (50u" or 1.27um)
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.00 mm (0.08) to 4.82 mm (0.19)
- Pull-out Force: 3.7 N (avg.) per contact
- Lead-Free Solderable: Yes
- SMT Coplanarity: 0.006" (0.15 mm)
- Configuration: Pass-through, with optional polarization and lock; multiple contact positions
- Other Features: Pass-through options, alignment pins, locking clips, and different plating options
Buy the SAMTEC MMS11001LSV – Reliable Multi-Pin Connector for Industrial Applications
Enhance your electronic projects with the high-performance MMS11001LSV connector. Designed for reliability and durability, it features robust phosphor bronze contacts with gold or tin plating, supporting high-current loads up to 3.9A per pin. Its compact form factor is suitable for high-density applications, offering excellent resistance to temperature extremes from -55°C to +125°C, depending on plating. Easy to solder and install, this connector includes optional polarization and locking features to ensure secure, stable connections, making it ideal for industrial and electronic equipment.
Order your SAMTEC MMS11001LSV today and ensure your high-current connections are reliable, durable, and perfect for demanding industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MMS11001LSV?
You can click on the BUY or RFQ button to purchase MMS11001LSV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MMS11001LSV?
You can download the MMS11001LSV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MMS11001LSV?
SAMTEC
