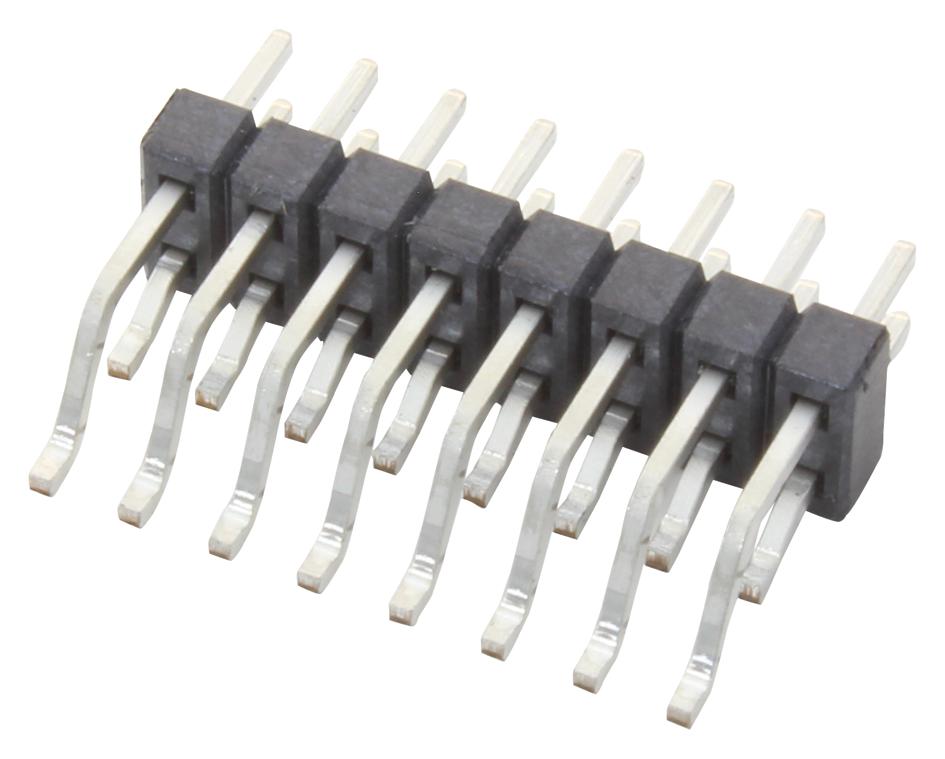

SAMTEC MMT12801TSHP Surface Mount Connector
The MMT12801TSHP is a high-quality surface mount connector designed for reliable PCB connections in electronic assemblies. Constructed with black liquid crystal polymer insulators and phosphor bronze terminals, it features gold or tin plating over nickel for enhanced durability and corrosion resistance. The connector operates within temperature ranges from -55°C to +105°C with tin and up to +125°C with gold plating. Suitable for both single and double-row configurations, it offers flexible options including alignment pins, locking clips, molded pick & place pads, and various platings, making it ideal for surface mount and mixed-technology applications.
SAMTEC MMT12801TSHP Surface Mount Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 p" Ni
- Operating Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Max Height: 0.004" (with stencil solution available)
- Pitch: 2.00 mm (.0787")
- Number of Pins: varies (see options for 200, 250, 300 pins)
- Configurations: Single or double row
- RoHS Compliant: Yes
- Additional Features: optional alignment pins, locking clips, molded pick & place pads, various platings
- Applications: Surface mount, mixed technology
Buy the Buy Samtec MMT12801TSHP Part Number MMT12801TSHP Online
Discover the versatile and durable Surface Mount Connector designed by Samtec, featuring advanced insulator and terminal materials for optimal performance. Ideal for high-reliability PCB connections, it operates across a wide temperature range and offers various configurations to meet specific project needs. Easy to install with optional accessories like alignment pins and locking clips, ensuring secure, precise connections in surface mount or mixed-technology applications. Purchase online today for fast delivery and expert support.
Order your Samtec Series MMT12801TSHP connector today and ensure reliable PCB connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC MMT12801TSHP?
You can click on the BUY or RFQ button to purchase MMT12801TSHP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MMT12801TSHP?
You can download the MMT12801TSHP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MMT12801TSHP?
SAMTEC
