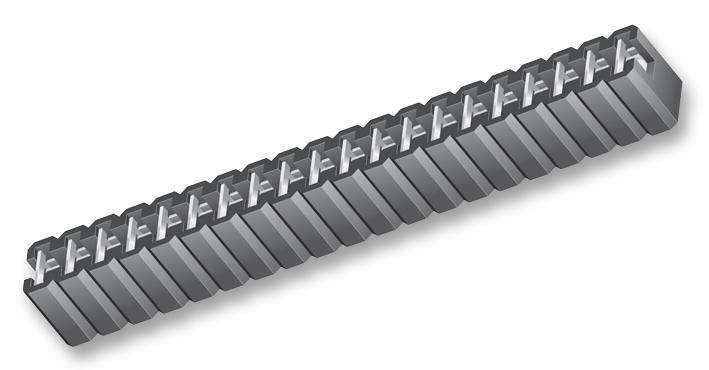

SAMTEC MNT102BKG Multi-Position Shunt Connector
The MNT series multi-position shunt connector is designed for industrial applications, compatible with 0.1-inch terminal strips including TSW, HTSW, MTSW, and others. Made from natural thermoplastic insulator material with phosphor bronze contacts, it supports current ratings of 4.3 A per pin for SNT and 3.9 A for MNT. Rated for operating temperatures from -55°C to +125°C, it offers a contact resistance of 5 mΩ, working voltage of 450 VAC, and insertion force of 33 oz. Dimensions and specifications ensure reliable and secure connections in automation and control systems.
SAMTEC MNT102BKG Multi-Position Shunt Connector Specifications:
- Insulator Material: Natural Thermoplastic
- Contact Material: Phosphor Bronze
- Current Rating (SNT/TSW): 4.3 A per pin
- Current Rating (MNT/TSM): 3.9 A per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 5 mΩ (SNT), 10 mΩ (SNM)
- Working Voltage: 450 VAC
- Insertion Depth: 2.29 mm (.090" min)
- Lead Size: 0.64 mm (.025" SQ) for SNT, 0.51 mm (.020" SQ) for SNM
- Insertion Force: 33 oz (9.17 N)
- Withdrawal Force: Not specified
- Applicable for terminal strip connections in industrial automation and control circuits
Buy the Samtec MNT102BKG – Reliable Multi-Position Shunt for Industrial Applications
Purchase the Samtec MNT102BKG multi-position shunt connector online today—engineered for precision and durability in industrial automation. This connector supports reliable connections with compatibility across various terminal strip configurations, rated for high currents, and capable of operating in temperatures from -55°C to +125°C. Its high-quality phosphor bronze contacts ensure low contact resistance of 5 mΩ, while the natural thermoplastic insulator provides durability. The compact design and secure insertion depth make it ideal for automation, control panels, and manufacturing systems, ensuring dependable performance in demanding environments.
Get Samtec MNT102BKG today—built for reliable connections in automation and control systems.
Frequently Asked Questions
Where can I buy SAMTEC MNT102BKG?
You can click on the BUY or RFQ button to purchase MNT102BKG from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MNT102BKG?
You can download the MNT102BKG datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MNT102BKG?
SAMTEC
