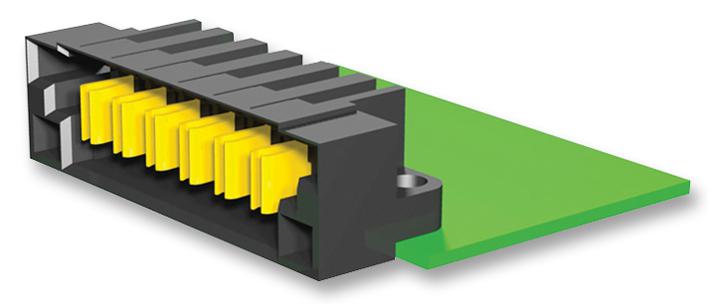

SAMTEC MPT020101LRASD Power Blade Header
The MPT01 series dual blade header by Samtec is designed for high-power electrical connections, supporting 30A current with a voltage rating of 600 VAC/848 VDC. It features a black LCP insulator and copper alloy contacts plated with silver over 50% nickel, ensuring durability and corrosion resistance. The polarized alignment feature aids precise mating, making it ideal for power and signal combination applications. Suitable for thick PCB mounting with a contact pitch of 6.30 mm, it meets RoHS compliance and operates efficiently within a temperature range of -55°C to +125°C depending on plating. Perfect for industrial electrical assemblies requiring reliable and robust headers.
SAMTEC MPT020101LRASD Power Blade Header Specifications:
- Operating temperature range: -55°C to +125°C with gold plating, -55°C to +105°C with tin plating
- Voltage rating: 600 VAC, 848 VDC
- Current capacity: 30A (with gold plating), 28.8A (RoHS compliant with tin plating), 22.3A (with specific configurations)
- Contact material: Copper alloy
- Plating: Silver over 50% Nickel, optional gold plating
- Insulator material: Black LCP (Liquid Crystal Polymer)
- Pitch: 6.30 mm (.247 inch)
- Number of positions varies; typically designed for applications with 2 to 6 positions
- RoHS compliant, lead-free solderable, suitable for thick PCB mounting
- Features: Polarized alignment, locking clip (manual placement required), high power and signal combination options, compatible with various Samtec series for different needs
Buy the Samtec MPT01– Reliable Power and Signal Connectors for Industrial Applications
Enhance your electrical assembly with the Samtec Power Blade Header. Designed for high power and signal combination, it features a robust copper alloy contact, silver over nickel plating for corrosion resistance, and a polarized alignment for precise connection. Suitable for thick PCB mounting, it operates reliably within a broad temperature range of -55°C to +125°C. Featuring RoHS compliance and lead-free solderability, this header ensures a durable, safe, and efficient connection solution in demanding industrial environments. Order online today for fast delivery and superior quality.
Get Samtec MPT01 today—built for high power, durability, and reliable electrical connections in industrial and equipment applications.
Frequently Asked Questions
Where can I buy SAMTEC MPT020101LRASD?
You can click on the BUY or RFQ button to purchase MPT020101LRASD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part MPT020101LRASD?
You can download the MPT020101LRASD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of MPT020101LRASD?
SAMTEC
