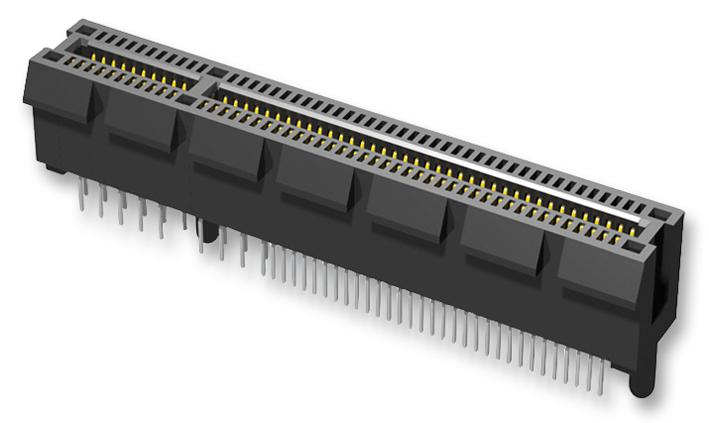

SAMTEC PCIE09802FDTH PCIe Card Socket
The PCI Express card socket is designed for high-speed data transfer and reliable card connections. Featuring phosphor bronze contacts with gold or tin over nickel plating, this connector supports differential pair signaling at 7.0 GHz / 14 Gbps. It accepts 1.6 mm PCIe cards and offers options for PCB or board mount installation. The insulator is black nylon, with a card insertion depth of approximately 8.00 mm. Suitable for operating temperatures from -55°C to +125°C, it complies with industry standards and is ideal for use in high-performance computing and communication systems, providing rugged durability and precise signal integrity.
SAMTEC PCIE09802FDTH PCIe Card Socket Specifications:
- Insulator Material: Black Nylon
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni (1.27 µm)
- Current Rating: 2.2 A per contact
- Operating Temperature: -55°C to +125°C
- Card Insertion Depth: approximately 8.00 mm
- PCIe Positions: up to 16 (x16)
- Connector Style: PCIe Socket, PCB or board mount options
- Signaling: Differential pair at 7.0 GHz / 14 Gbps
- Compliance: Industry standards; performance data available at www.samtec.com
Buy the Buy Samtec PCI Express Card Socket Part Number PCIE09802FDTH Online
Enhance your high-performance computing setup with this reliable PCIe card socket, supporting up to 16 positions for optimal expansion. Featuring gold or tin over nickel plating, it ensures excellent electrical conductivity and durability. The connector accommodates 1.6 mm PCIe cards with a card insertion depth of 8.00 mm, suitable for applications requiring high data rates up to 14 Gbps at 7.0 GHz. Its rugged black nylon insulator and temperature tolerance from -55°C to +125°C make it ideal for demanding industrial, communications, and server environments. Buy online now for quick, secure delivery.
Get Samtec PCIE09802FDTH today—designed for high-speed data transfer and long-lasting durability in demanding systems.
Frequently Asked Questions
Where can I buy SAMTEC PCIE09802FDTH?
You can click on the BUY or RFQ button to purchase PCIE09802FDTH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PCIE09802FDTH?
You can download the PCIE09802FDTH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PCIE09802FDTH?
SAMTEC
