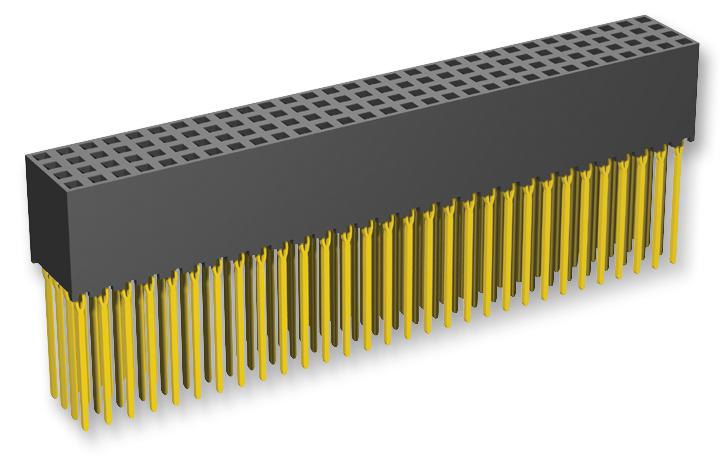

SAMTEC PTHF13002GFQ368 Self-nesting PCB socket
The PTHF-130-02-GF-Q-368 is a high-performance, self-nesting socket designed for versatile PCB applications. Constructed with nylon insulator material and phosphor bronze contacts, it offers excellent electrical conductivity with gold or tin plating. Operating within -55°C to +125°C, this socket features a 10 mΩ contact resistance, a variety of tail lengths for insertion depth flexibility, and complies with RoHS standards for lead-free soldering. Suitable for press-fit and soldering assembly, it ensures reliable connection, durability, and ease of integration in complex electronic systems.
SAMTEC PTHF13002GFQ368 Self-nesting PCB socket Specifications:
- Insulator Material: Nylon
- Contact Material: Phosphor Bronze
- Plating: Gold (Au) or Tin (Sn) over 50µ
- Ni
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.62 mm (0.103 inches) to 8.03 mm (0.316 inches)
- Tail Lengths: 0.50 mm (.020 inches) to 1.11 N (about 0.044 inches)
- Normal Force: 60 grams (0.59 N) average
- Withdrawal Force: Suitable for single contact use
- RoHS Compliant: Yes
- Solderable: Yes
- Applicable for press-fit and paste-in hole processes
- Mounting Options: Stack through and non-stack through
- Certifications: RoHS compliant, lead-free process
- Contact Plating: 20 micro-inches (0.51 µm) gold on contact, matte tin on tail
- Style Options: Various lengths and arrangements, non-standard options available
Buy the Buy Samtec PTHF-130-02-GF-Q-368 Part Number PTHF13002GFQ368 Online
Experience the convenience of purchasing the Samtec self-nesting PCB socket online. Designed for high reliability and easy integration, this socket features versatile mounting styles and excellent electrical performance. With a temperature range from -55°C to +125°C and RoHS compliance, it ensures your projects meet safety and environmental standards. Perfect for both press-fit and solder-in applications, this socket offers long-lasting durability, minimal contact resistance, and easy assembly, making it an ideal choice for complex PCB designs and professional electronic manufacturing.
Order your Samtec Series PTHF-130-02-GF-Q-368 today and ensure your electronic assemblies have reliable, durable contacts with versatile mounting options.
Frequently Asked Questions
Where can I buy SAMTEC PTHF13002GFQ368?
You can click on the BUY or RFQ button to purchase PTHF13002GFQ368 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part PTHF13002GFQ368?
You can download the PTHF13002GFQ368 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of PTHF13002GFQ368?
SAMTEC
