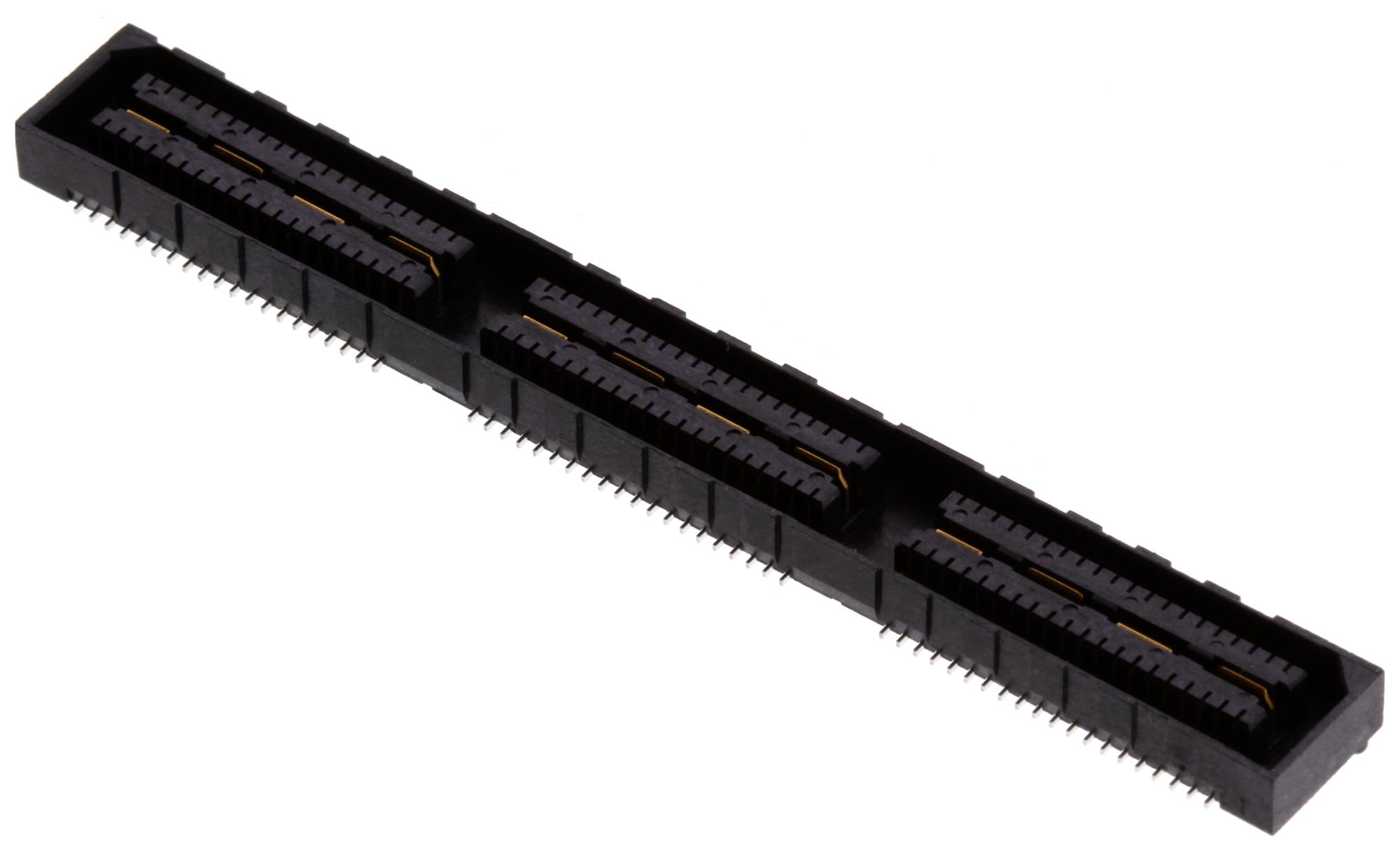

SAMTEC QSE06001FDA High-Speed Edge Mount Connector
The QSE06001FDA is a highly reliable high-speed edge mount connector designed for data and power transmission in advanced electronic applications. Featuring liquid crystal polymer insulation and phosphor bronze terminals plated with gold or tin over nickel, this connector supports data protocols like 100 GbE, PCI Express, and SATA. It accommodates multiple stacking heights up to 30 mm, with RoHS compliance and lead-free solderability. Its intricate design includes integral metal planes for power or ground, ensuring optimal electrical performance and durability in demanding environments, suitable for flexible power and signal solutions.
SAMTEC QSE06001FDA High-Speed Edge Mount Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ
- (1.27 μm) Ni
- Current Rating: 2A per pin
- Operating Temperature Range: -55°C to unspecified maximum
- Voltage Rating: 225 VAC
- Max Cycles: 1
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Stacking Heights: 15mm, 22mm, 30mm
- Gold Plating: 30 (0.76 μm) for data rate cable mating
- Board Mates: QSE-028-01-F-D-DP-A, QSE-060-01-F-D-A
- Cable Mates and Standoffs: Compatible with specific connectors and solutions
- Additional features include integral metal ground planes, retention, guide posts, and friction lock options
- Maximum mating length: 7.24mm, Pin diameter: 0.80mm
- Certification: Recognized for durability, performance in high-speed data transmission
Buy the Buy Samtec QSE Series Edge Mount Connector Part Number QSE06001FDA Online
Purchase the Samtec QSE06001FDA online today and enjoy fast, reliable shipping. This high-speed connector with liquid crystal polymer insulation and gold or tin plating ensures excellent electrical performance for data and power transmission. Its versatile stacking heights and integral ground planes make it ideal for complex electronic assemblies requiring durability and high-speed capabilities. Whether for standard or customizable configurations, ordering online offers convenience, competitive pricing, and fast delivery for your professional electronics projects.
Buy Samtec QSE06001FDA now and experience unmatched reliability and performance in high-speed data and power applications.
Frequently Asked Questions
Where can I buy SAMTEC QSE06001FDA?
You can click on the BUY or RFQ button to purchase QSE06001FDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSE06001FDA?
You can download the QSE06001FDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSE06001FDA?
SAMTEC
