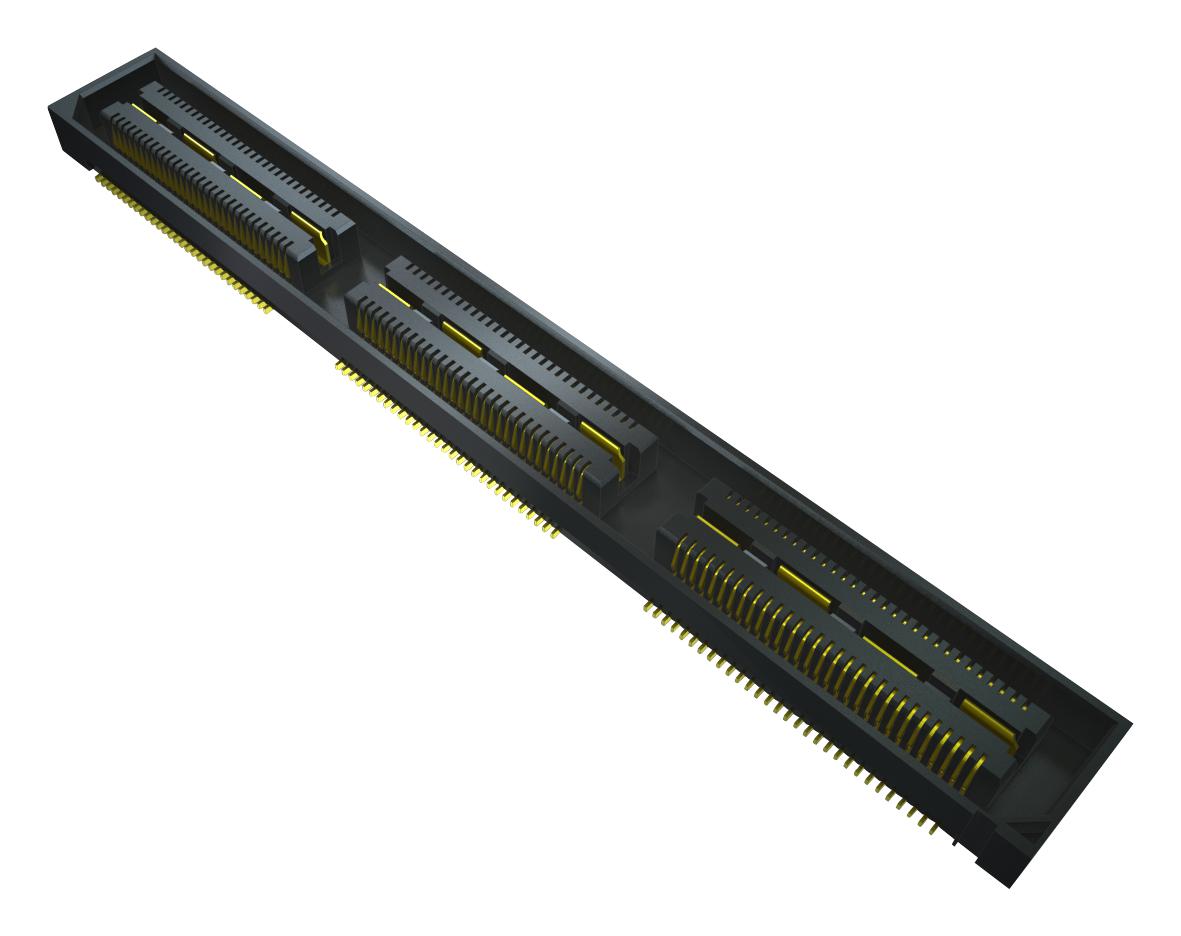

SAMTEC QSH04001LDDPA High-Speed Ground Plane Socket
The SAMTEC QSH series high-speed ground plane socket provides a reliable and efficient solution for connecting power and signal lines. Constructed with a liquid crystal polymer insulator and phosphor bronze contacts, this connector is designed for demanding applications requiring high mating cycles and excellent performance. It's compatible with UMPT/UMPS for flexible two-piece power/signal solutions and offers options for various stack heights, plating types, and positions per row. The QSH series is ideal for applications where both power and signal transmission are critical, ensuring stable and efficient data transfer.
SAMTEC QSH04001LDDPA High-Speed Ground Plane Socket Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 µ" (1.27 µm) Ni
- Current Rating (Contact): 2 A per pin (2 pins powered)
- Current Rating (Ground Plane): 25 A per ground plane (1 ground plane powered)
- Operating Temp Range: -55 °C to +125 °C
- Voltage Rating: 175 VAC (5 mm Stack Height)
- Max Cycles: 100
- Processing Lead–Free Solderable: Yes
- SMT Lead Coplanarity: (0.10 mm) .004" max (020-060)
- RoHS Compliant: Yes
- Mated Height: 0.197"
- Also Available: 15 mm, 22 mm and 30 mm stack height, 30 µ" (0.76 µm) Gold, Edge Mount & Guide Posts, 80, 120, 150 positions per row, Retention Option
- Note: Some lengths, styles and options are non-standard, non-returnable
- Cable Mates: HQCD, HQDP
- Standoffs: SO
- High Mating Cycles: Yes
- High-Speed Channel Performance: Yes
- Contact Area Plating: 50 µ" (1.27 µm) min Au over 150 µ" (3.81 µm) Ni
- Ground Plane Plating: 10 µ" (0.25 µm) min Au over 50 µ" (1.27 µm) Ni
- Solder Tail Plating: Matte Tin
- Signal Pins Plating: Gold Flash
- Pin Positions per Row: 30, 60, 90
- Pairs per Row: 20
- Board Space Tolerances: See SO Series
Buy the QSH-040-01-L-D-DP-A SAMTEC High-Speed Ground Plane Socket | myMectronic
Securely purchase the SAMTEC QSH-040-01-L-D-DP-A connector online for reliable and efficient power and signal connectivity.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC QSH04001LDDPA?
You can click on the BUY or RFQ button to purchase QSH04001LDDPA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSH04001LDDPA?
You can download the QSH04001LDDPA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSH04001LDDPA?
SAMTEC
