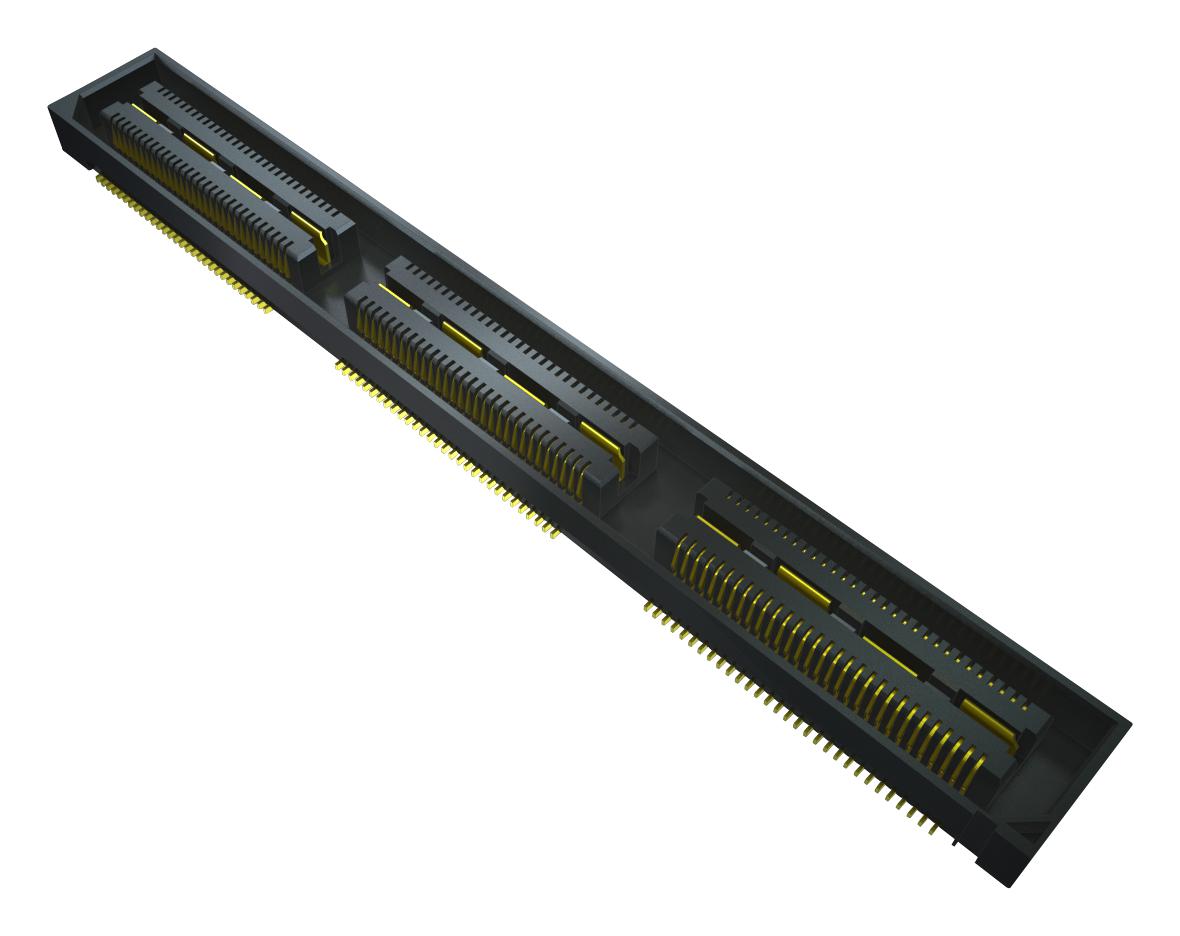

SAMTEC QSH09001LDAK High-Density Connector
The QSH09001LDAK is a versatile low-profile connector designed for high-density interconnections in electronic assemblies. Featuring phosphor bronze contact material with gold flash and matte tin plating, it ensures reliable electrical performance and corrosion resistance. It supports operating temperatures up to 140°C and has a voltage rating of 175 VAC. The connector accommodates multiple pairs, with options for differential or single-ended connections, and is compatible with SMT lead coplanarity and lead-free soldering. Its precise dimensions allow for space-efficient layouts in complex electronic systems, making it ideal for board stacking and high-current applications.
SAMTEC QSH09001LDAK High-Density Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50μm Ni
- Operating Temp Range: Up to 140°C
- Voltage Rating: 175 VAC
- Maximum Cycles: 100
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm to 0.15 mm
- Pin Count Options: 20 to 60 pins per bank
- Pad Type: Differential or Single-ended
- Board Mates: No. of Pairs Options including 20, 60
- Board Stacking: Suitable for more than two connectors
- Contact Types: Full Reel, Tape & Reel available
- Dimensions: Length varies with configuration, typical lead length ~ 7.00 mm
- Insulator Material: Polyimide film
- Certifications: Non-returnable, comply with standards at samtec.com
Buy the Samtec QSH09001LDAK – Reliable High-Density Connectors for Industrial Applications
Enhance your electronic assemblies with the high-density connector designed for reliable performance. Featuring gold flash and matte tin plating, it ensures excellent electrical contact and corrosion resistance. Perfect for board stacking and space-constrained applications, this connector supports up to 175 VAC and 100 mating cycles. Its SMT compatibility and lead-free soldering process make it ideal for modern manufacturing. Order now to enjoy seamless installation and dependable long-term operation, boosting your system’s efficiency and durability.
Buy Samtec QSH09001LDAK now and experience unmatched reliability and high-performance electronic interconnections in your systems.
Frequently Asked Questions
Where can I buy SAMTEC QSH09001LDAK?
You can click on the BUY or RFQ button to purchase QSH09001LDAK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QSH09001LDAK?
You can download the QSH09001LDAK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QSH09001LDAK?
SAMTEC
