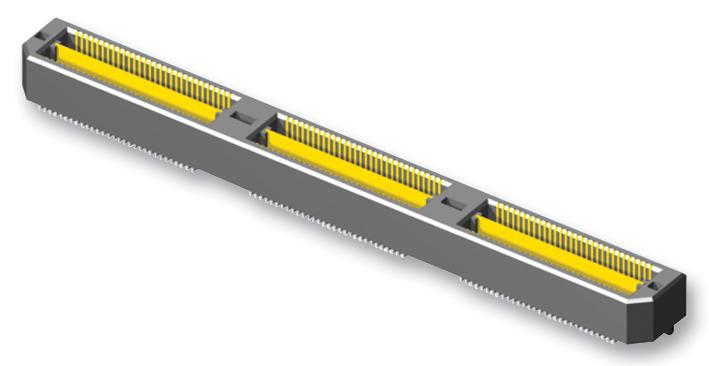

SAMTEC QTH03002LDAKTR High-Speed PCB Connector
The QTH series connectors feature an insulator made of Liquid Crystal Polymer, with phosphor bronze terminals plated with gold or tin over a nickel base, ensuring durability and high performance. Designed for PCB applications, these connectors support a wide temperature range from -55°C to +125°C and a voltage rating of 125 VAC. Available in various stack heights up to 30 mm, they provide reliable contact for single-ended and differential signaling at GHz frequency ranges, suitable for high-speed data transmission and electronic interconnections.
SAMTEC QTH03002LDAKTR High-Speed PCB Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over 50μ
- Ni
- Current Rating: Not specified
- Voltage Rating: 125 VAC
- Operating Temp Range: -55°C to +125°C
- Stack Heights: 5 mm, 15 mm, 22 mm, 30 mm
- Gold Plating: 301
- (0.76 μm)
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, SMT Lead Coplanarity 0.004" (0.10 mm) max
- Physical Dimensions: Varies with options, typical pin length 13.00 mm to 25.00 mm
- Maximum number of pairs per row: 80, 120, 150 positions
- Bandwidth: Up to 19 GHz, 33 Gbps for differential signaling
- Connector Type: Edge Mount & Guide Posts, Retention Options
- Cycle Life: 100 cycles
Buy the Buy Samtec QTH Series Part Number QTH03002LDAKTR Online
Order the Samtec QTH Series High-Speed PCB Connector online today and benefit from industry-leading signal integrity, high-frequency performance up to 19 GHz, and robust construction with gold or tin plating. Designed for demanding electronic applications, this connector supports various stack heights up to 30 mm, ensuring flexible deployment in complex PCB assemblies. With RoHS compliance and a 100-cycle lifespan, it offers durability and eco-friendly manufacturing standards. Purchase now for fast delivery and exceptional quality for your electronic projects.
Buy Samtec QTH03002LDAKTR now and experience unmatched high-speed data performance and reliable PCB interconnections.
Frequently Asked Questions
Where can I buy SAMTEC QTH03002LDAKTR?
You can click on the BUY or RFQ button to purchase QTH03002LDAKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QTH03002LDAKTR?
You can download the QTH03002LDAKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QTH03002LDAKTR?
SAMTEC
