SAMTEC QTH06003LDAKTR PCB connector
The QTH-060-07-F-D-A is an extended life, high-performance PCB connector designed for reliable power and ground connections. Featuring a liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating over nickel, it supports operating temperatures from -55°C to +125°C. Its robust construction includes 80 to 150 positions per row, stack heights up to 25mm, and RoHS compliance. It ensures excellent performance with 9GHz/18Gbps differential signaling and a maximum voltage rating of 125 VAC, suitable for demanding electronic and data applications.
SAMTEC QTH06003LDAKTR PCB connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating Options: Au or Sn over 50μ" Ni
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 125 VAC
- Contact Resistance: Supports 100 cycles
- Stack Heights: 15mm, 22mm, 30mm, up to 25mm
- Pin/Position Count: 80-150 per row
- RoHS Compliant: Yes
- Mating Cycle Life: 100 cycles
- Processing: Lead-Free Solderable, SMT Lead Coplanarity ±0.10 mm
- Performance: Data Rate up to 18Gbps, 9GHz signaling
- Board Standoff Compatibility: See SO Series
- Additional Features: Edge Mount, Guide Posts, Retention Options

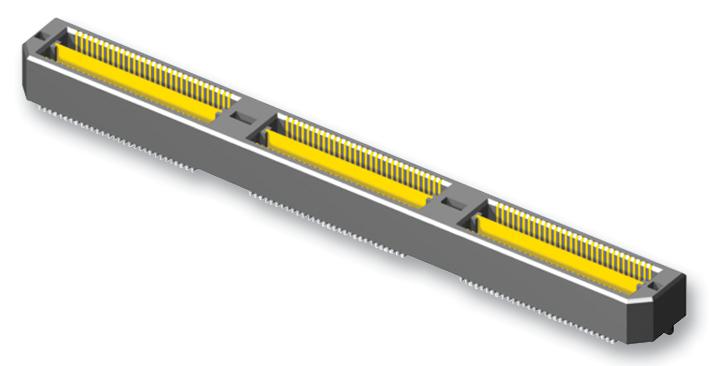

Buy the Buy Samtec QTH-060-07-F-D-A PCB Connector Part Number QTH06003LDAKTR Online
Acquire the Samtec QTH-060-07-F-D-A PCB connector today to enhance your electronic assemblies with a high-performance, durable, and reliable connection solution. Featuring liquid crystal polymer insulators and phosphor bronze contacts with gold or tin plating, it supports high-speed data rates up to 18Gbps and operates efficiently across a temperature range of -55°C to +125°C. With multiple stack height options and up to 150 positions per row, this RoHS-compliant connector ensures excellent electrical performance, long cycle life, and easy soldering, making it ideal for demanding applications requiring robust connections.
Order your Samtec QTH-060-07-F-D-A connector today and ensure reliable high-speed power and data connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC QTH06003LDAKTR?
You can click on the BUY or RFQ button to purchase QTH06003LDAKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part QTH06003LDAKTR?
You can download the QTH06003LDAKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of QTH06003LDAKTR?
SAMTEC
