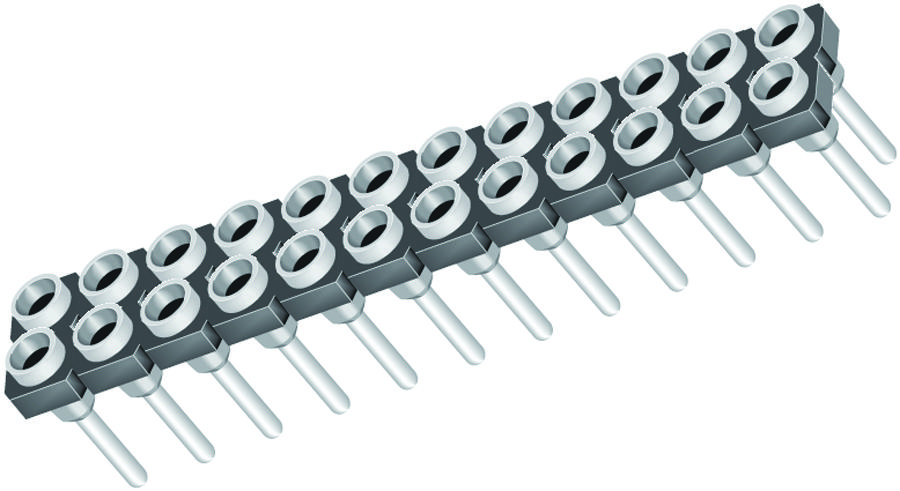

SAMTEC SDL106T10 Low-Profile Connector Strip
The SDL series from Samtec offers low-profile, double-row screw machine socket strips for through-hole mounting, compatible with multiple Samtec connectors. Featuring a 2.54mm pitch, they support 1 to 36 contacts per row and have a vertical orientation. The low-profile hollow-leg lead style enhances space-efficient connections. Made from black glass-filled polyester insulator material, they operate across -55°C to 125°C, with 30-micron gold-plated contacts for durability. Beryllium copper contacts in a machined brass shell ensure low resistance of 10 milliohms, meeting UL standards for industrial reliability.
SAMTEC SDL106T10 Low-Profile Connector Strip Specifications:
- Pitch: 2.54mm
- Number of Contacts: 1 to 36 per row
- Contact Material: Beryllium copper
- Shell Material: Machined brass
- Insulator Material: Black glass-filled polyester
- Contact Plating: 30 microns gold
- Temperature Range: -55°C to +125°C
- Contact Resistance: 10 milliohms
- Mounting Type: Through-hole
- Orientation: Vertical
- Lead Style: Hollow-leg low-profile
- RoHS Compliant: Yes
- UL Standard: E111594
Buy the Samtec SDL – Reliable Connector for Industrial Applications
Enhance your industrial electronics with Samtec SDL series connector strips, offering a space-saving design, gold-plated contacts for durability, and a wide operating temperature range. These high-quality socket strips support up to 36 contacts per row and are suitable for through-hole mounting, ensuring reliable connections in demanding industrial environments. Trust Samtec's quality to meet UL standards and provide low contact resistance, making them an ideal choice for manufacturing, automation, and electronic applications. Purchase now online and benefit from fast delivery and superior reliability.
Buy Samtec SDL series socket strips now and experience unmatched reliability and high-temperature performance in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SDL106T10?
You can click on the BUY or RFQ button to purchase SDL106T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SDL106T10?
You can download the SDL106T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SDL106T10?
SAMTEC
