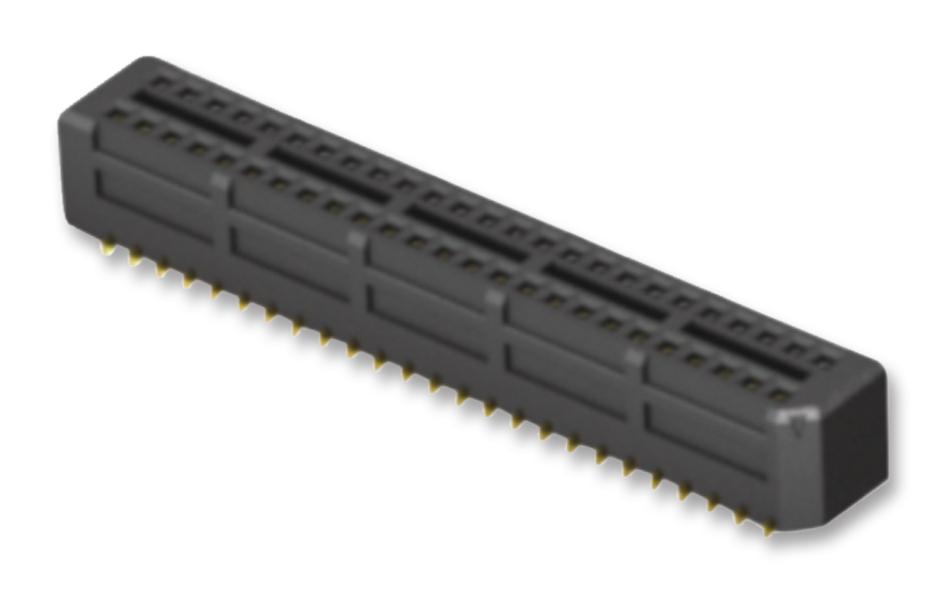

SAMTEC SEMS12002030GDKTR Micro Tiger Eye Socket
The SEMS12002030GDKTR is a high-reliability micro Tiger Eye socket featuring Black Liquid Crystal Polymer insulation and BeCu contact material. Designed for high-frequency applications, it supports single-ended and differential pair signaling up to 34 Gbps and 17 GHz. With a 6 mm stack height, RoHS compliance, and lead-free solderability, this connector ensures durability and optimal performance. It is compatible with SAMTEC SEMS and SEMM mates, and options include locking clips and weld tabs for secure connections. Suitable for electronic testing and assembly in demanding environments, it offers extended life and high mating cycles.
SAMTEC SEMS12002030GDKTR Micro Tiger Eye Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu, Platin, Au, or Snover 50u" Ni
- Operating Temp Range: -55°C to +125°C
- Current Rating: 2.6 Amperes per pin
- RoHS Compliant: Yes
- Processing Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.004" max
- Stack Height: 6 mm
- Signaling: Single-ended and differential pair
- Insertion Loss: Rated at 3 dB
- Frequency: 12 GHz / 24 Gbps, 17 GHz / 34 Gbps
- Options: Locking clip, weld tab, various mated heights
- Durability: Extended life with high mated cycle count
Buy the Buy SAMTEC SEMS12002030GDKTR Part Number SEMS12002030GDKTR Online
Purchase the Micro Tiger Eye Socket from SAMTEC online for high-reliability testing and signal transmission. Designed with Liquid Crystal Polymer insulation and BeCu contacts, it supports signal speeds up to 34 Gbps, ensuring excellent performance. The socket features a 6 mm stack height, RoHS compliance, and options for locking clips and weld tabs. Perfect for demanding electronic assemblies, it offers extended mating life and high cycle durability, making it an ideal choice for sophisticated applications requiring secure, stable connections with excellent electrical performance.
Get SAMTEC SEMS12002030GDKTR today—built for high reliability, high-frequency signal integrity, and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC SEMS12002030GDKTR?
You can click on the BUY or RFQ button to purchase SEMS12002030GDKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SEMS12002030GDKTR?
You can download the SEMS12002030GDKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SEMS12002030GDKTR?
SAMTEC
