SAMTEC SFM10701LD Low Insertion Force Connector
The SFM10701LD is a reliable low insertion force connector featuring Tiger Eye contacts made of phosphor bronze, with options for surface mount or through-hole installation. It offers high current capacity of 3.2A per pin, an operating temperature range of -55°C to +125°C, and optional locking features for secure mating. Suitable for high-reliability electronic applications, it supports both SMT and through-hole tails, and is compatible with TFM mating systems for coplanar and perpendicular connections, ensuring robust electrical performance and flexible assembly options.
SAMTEC SFM10701LD Low Insertion Force Connector Specifications:
- Contact Material: Phosphor Bronze with Gold or Silver plating options
- Current Rating: 3.2A per pin
- Voltage Rating: 125V (typical), see datasheet for exact values
- Operating Temperature Range: -55°C to +125°C
- Insertion Force: Standard 132 g (1.29 N), Max 0 oz (0.56 N)
- Withdrawal Force: 1.5 lbf (6.67 N)
- Pin Pitch: 1.27mm (0.050 inch)
- Contact Resistance: Low, increases with unmating
- Tails: Surface mount or through-hole, optional solder nail
- Locking Feature: Locking clip available
- Plating: Au or Ag over Sn, optional lower-cost platings
- Material: Phosphor Bronze, with liquid crystal polymer insulator
- Suitable for: Electronic circuit modules, PCB interconnects, high-reliability applications

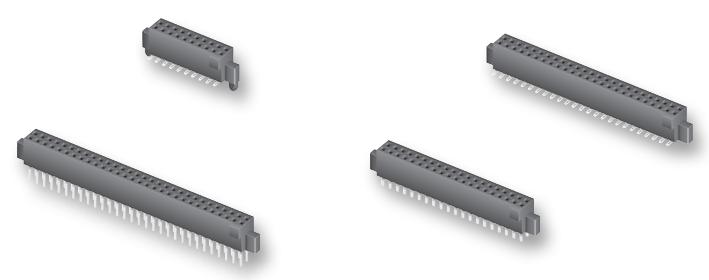

Buy the Samtec Series SFM: High-Reliability Low Insertion Force Connector SFM10701LD
Purchase the Samtec Series SFM10701LD online now to secure a high-quality, low insertion force connector with Tiger Eye contacts. Perfect for reliable electronic assembly, it supports both surface mount and through-hole configurations, offering lock options and a wide temperature operating range. Its robust design ensures excellent electrical performance and ease of installation, meeting the demands of high-reliability projects. Enjoy quick online ordering and fast delivery to enhance your electronic systems with this versatile, proven connector.
Order your Samtec Series SFM10701LD high-reliability connector today and ensure secure, low-force electronic connections for your critical applications.
Frequently Asked Questions
Where can I buy SAMTEC SFM10701LD?
You can click on the BUY or RFQ button to purchase SFM10701LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFM10701LD?
You can download the SFM10701LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFM10701LD?
SAMTEC
