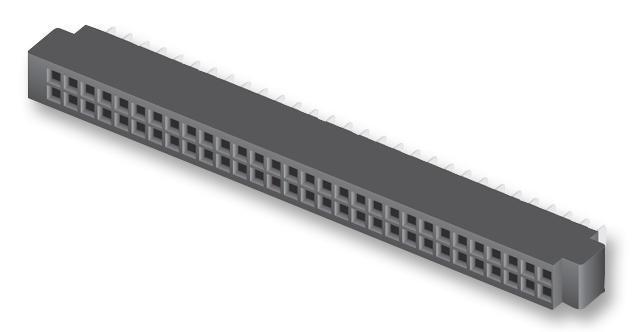

SAMTEC SFMH12002LD Surface-Mount Connector
The SFMH12002LD is a high-performance, surface-mount connector designed by Samtec for versatile electronic applications. Constructed with black liquid crystal polymer insulators and phosphor bronze terminals, this connector features gold over nickel plating for enhanced corrosion resistance. It supports current ratings up to 26 A per pin, operates efficiently within a temperature range of -55°C to +125°C, and complies with RoHS standards. Suitable for PCB connections, it offers precise insertion and withdrawal forces, coplanarity, and a variety of pin counts and options tailored to advanced electronic systems.
SAMTEC SFMH12002LD Surface-Mount Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn over Au, Gold over Nickel
- Current Rating: 26 A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Contact Resistance: 15 mΩ
- Insertion Depth: 3.35 mm to 4.57 mm
- Insertion Force: 2.5 oz (0.69 N) average
- Withdrawal Force: 2.0 oz (0.56 N) average
- Surface Mount and Through-Hole Options Available
- Number of Pins: Options from 5 to 50 positions
- Coplanarity: 0.10 mm max for SMT, 0.15 mm for through-hole
- Dimensions: 1.27 mm pitch, various sizes based on configuration
Buy the Samtec Series SFMH Connector: SFMH12002LD
Order the high-quality Samtec SFMH12002LD connector online today to ensure your electronic projects benefit from reliable, RoHS-compliant, high-current contact solutions. Designed for both surface-mount and through-hole applications, this connector offers precise pin alignment, excellent durability, and a temperature range suitable for demanding environments. With options supporting various pin counts and plating finishes, it guarantees excellent electrical performance and mechanical stability. Purchase now to enhance your electronic assembly's reliability and efficiency with this advanced connector product.
Get Samtec SFMH12002LD today—built for high current capacity and reliable PCB connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC SFMH12002LD?
You can click on the BUY or RFQ button to purchase SFMH12002LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SFMH12002LD?
You can download the SFMH12002LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SFMH12002LD?
SAMTEC
