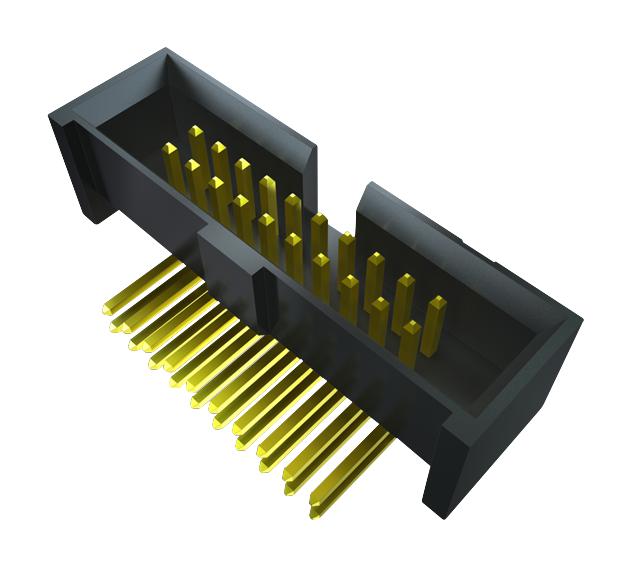

SAMTEC SHF11001LDRA High-Speed Edge Connector
This series features versatile high-speed connectors constructed with black Liquid Crystal Polymer insulators and gold or tin-plated contacts for reliable electrical connections. Designed to operate in temperatures ranging from -55°C to +125°C, these connectors support RoHS compliance and lead-free soldering processes. They are available in various sizes and pin configurations, with options for strain relief and SMT compatibility. Their robust construction ensures durability, precise coplanarity, and suitability for demanding electronic applications including high-speed data and signal transmission.
SAMTEC SHF11001LDRA High-Speed Edge Connector Specifications:
- Insulator Material: Liquid Crystal Polymer (LCP)
- Terminal Material: Gold or Tin-plated contacts
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Processing: SMT
- Coplanarity: 0.004 inch (0.10 mm) max
- Number of Pins: Varies (e.g., 13, 17, 20, 25)
- Pin Spacing: 1.27 mm (.050 inch)
- Strain Relief: Available options
- Sizes: Standard and custom options
- Certifications: See manufacturer website for complete details
- Dimensions: Vary based on configuration, typically supporting high-density layouts
Buy the Buy Samtec SHF11001LDRA Part Number SHF11001LDRA Online
Purchase the high-speed edge connector from Samtec online today for dependable performance in demanding electronic applications. Featuring Liquid Crystal Polymer insulation, gold or tin-plated contacts, and rated for -55°C to +125°C, these connectors support RoHS compliance and lead-free soldering. They are available in multiple pin configurations with strain relief options and are suitable for SMT processing. Ensure your designs benefit from robust, high-density, and efficient connections. Order now to enhance your electronic systems with quality and reliability.
Order your Samtec Series SHF11001LDRA connector today and ensure high-speed, reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SHF11001LDRA?
You can click on the BUY or RFQ button to purchase SHF11001LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SHF11001LDRA?
You can download the SHF11001LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SHF11001LDRA?
SAMTEC
