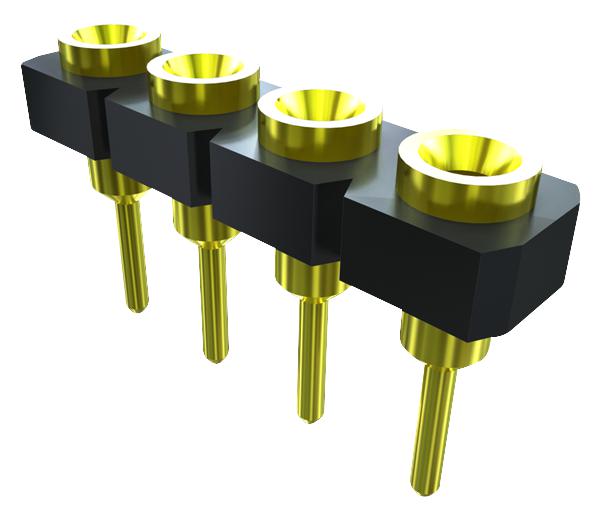

SAMTEC SL114G19 Socket Strip
The SL series from Samtec features low-profile, single-row socket strips designed for through-hole mounting in industrial applications. With a 2.54mm pitch spacing and vertical orientation, these sockets accommodate 1 to 32 contacts per row. They utilize a micro socket (hollow leg) design for low insertion force and operate within a temperature range of -55°C to 125°C, with gold plating of 30 microns. Made of black glass-filled polyester insulator, contacts are crafted from beryllium copper in machined brass shells, offering a contact resistance of 10 milliohms. These sockets are RoHS compliant, lead-free, and compatible with various Samtec connector series, providing reliable, high-performance electrical connections suitable for demanding electrical and electronic environments.
SAMTEC SL114G19 Socket Strip Specifications:
- Pitch: 2.54 mm (0.100 inch)
- Number of contacts: 1 to 32 per row
- Insulator Material: Black Glass Filled Polyester
- Contact Material: Beryllium Copper
- Shell Material: Brass
- Plating: Au over 50μ" Ni (30μ" gold)
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force (Standard): 90 oz (2.50 N) average, 16 oz (4.45 N) max for 0.43 mm (.017") diameter probe
- Low Insertion Force: 25 oz (0.70 N) average, 5.5 oz (1.53 N) max
- Withdrawal Force (Standard): 2.5 oz (0.70 N) average, 1.5 oz (0.42 N) min
- Low Insertion Force: 2.0 oz (0.56 N) average, 0.5 oz (0.14 N) min
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Compatibility: Samtec TS, TD, HTS, BBS, BBD, BBL, BDL, BHS series
- Design: Micro socket (hollow leg) for low insertion force
- Standards: UL E111594
Buy the Samtec Series SL Socket Strips: SL114G19
Purchase the Samtec SL114G19 socket strip online today and enjoy outstanding electrical performance, high-temperature tolerance, and secure, low-force connections. Designed for demanding industrial and electronic applications, this high-quality socket strip offers rapid assembly and robust durability. With gold plating and RoHS compliance, it ensures reliable contact and environmental safety. Ideal for compact designs, it supports a variety of Samtec connector series, providing flexibility and high-performance solutions for your electrical and electronic needs. Order now for fast, secure delivery and technical support.
Buy Samtec SL114G19 now and experience unmatched reliability and performance in high-density electrical connections.
