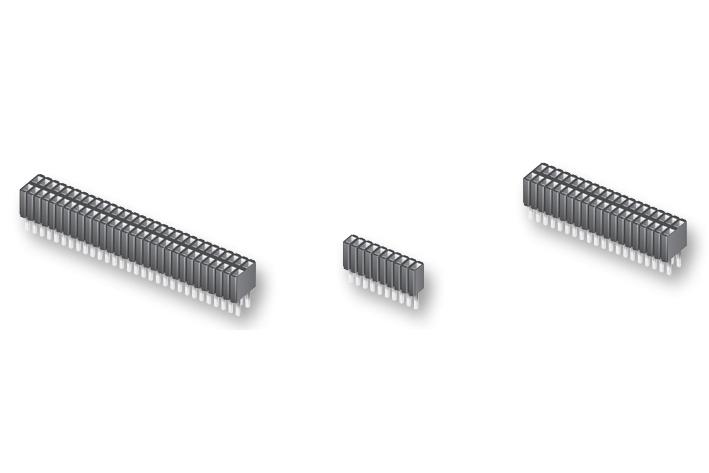

SAMTEC SLM11701SD Micro Socket
The through-hole micro sockets are designed for reliable electrical connections in compact electronic assemblies. Crafted with black glass-filled polyester insulators and phosphor bronze contacts, these sockets feature matte tin or gold plating for enhanced performance. They support operating temperatures from -55°C to +125°C, with a contact resistance of 10 mΩ and current ratings of up to 5.0 A per pin. The insertion depth ranges from 0.080 inches to 0.250 inches, making them suitable for a variety of PCB mounting applications. RoHS compliant and lead-free, these micro sockets ensure durability and high-quality connections for demanding electronic projects.
SAMTEC SLM11701SD Micro Socket Specifications:
- Insulator Material: Black Glass-filled Polyester (SLM), Black LCP (SMS)
- Contact Material: Phosphor Bronze
- Plating: Matte Tin or Gold
- Plating Thickness: 50µ
- Current Rating: 5.0 A per pin
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.080 inches to 0.250 inches (SLM), 0.135 inches to 0.250 inches (SMS)
- Wipe Length: 0.015 inches
- Insertion Force: 8 oz (2.22 N)
- Withdrawal Force: 6 oz (1.67 N)
- RoHS Compliant: Yes
- Lead-Free: Yes
- Number of Pins: Varies, see product series
- Operating Temperature: -55°C to +125°C
- Other Platings Available: Consult manufacturer
- Designs and options may vary, some lengths/styles are non-standard
Buy the Buy Samtec SLM Series Micro Sockets Part Number SLM11701SD Online
Secure high-quality, through-hole micro sockets online today. Designed for durable PCB connections supporting high currents and operating in extreme temperatures, these sockets ensure dependable electrical contact. Made with Phosphor Bronze and featuring tin or gold plating, they are RoHS compliant and lead-free. Suitable for compact electronic projects, they support various insertion depths, with high resistance to wear and temperature variations. Order now to improve your electronic assembly with precision-engineered micro sockets that provide reliable performance in demanding environments.
Order your Samtec Series SLM11701SD micro sockets today and enhance your electronic assemblies with durable, reliable PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC SLM11701SD?
You can click on the BUY or RFQ button to purchase SLM11701SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM11701SD?
You can download the SLM11701SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM11701SD?
SAMTEC
