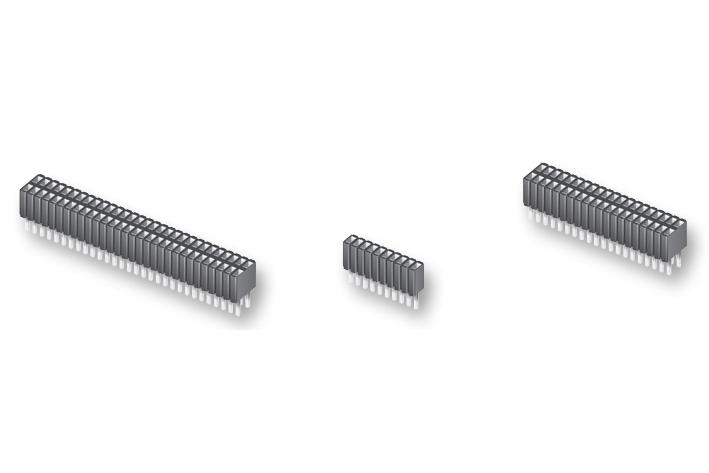

SAMTEC SLM12301SS Edge Connector
This high-performance edge connector features black glass-filled polyester insulators with phosphor bronze contacts, plated with gold or tin over nickel. It is designed for reliable electrical connections with a current rating of 5.2A per pin for SLMTs and 5.0A for SMS/TMS models. Operating across temperatures from -55°C to +125°C with gold and -55°C to +105°C with tin, it offers low contact resistance of 10 mΩ, and adjustable insertion depths from 2.03 mm to 6.35 mm. The connector supports RoHS compliance and is suitable for wave or lead-free soldering, offering high durability and efficiency for custom electronic applications.
SAMTEC SLM12301SS Edge Connector Specifications:
- Insulator Material: Black Glass-filled Polyester (SLM), Black LCP (SMS)
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin (SLM), 5.0A per pin (SMS/TMS)
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.03 mm to 6.35 mm
- Withdrawal Force: 1.67 N average for single contact
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, Wave or Hand Soldering
Buy the Buy Samtec Edge Connector Part Number SLM12301SS Online
Discover the high-quality edge connector with gold or tin plating, suitable for demanding electronic assemblies. Designed for reliable connections, it offers a broad temperature range, low contact resistance, and RoHS compliance. Easily soldered with lead-free processes, it ensures durability and excellent performance in various applications. Whether you need a connector for commercial or industrial electronics, this part provides exceptional electrical and mechanical stability, making it an ideal choice for engineers and technicians seeking dependable connection solutions for complex projects.
Buy Samtec SLM12301SS now and experience unmatched reliability and high-performance electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SLM12301SS?
You can click on the BUY or RFQ button to purchase SLM12301SS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM12301SS?
You can download the SLM12301SS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM12301SS?
SAMTEC
